5788800-1 - TE Connectivity

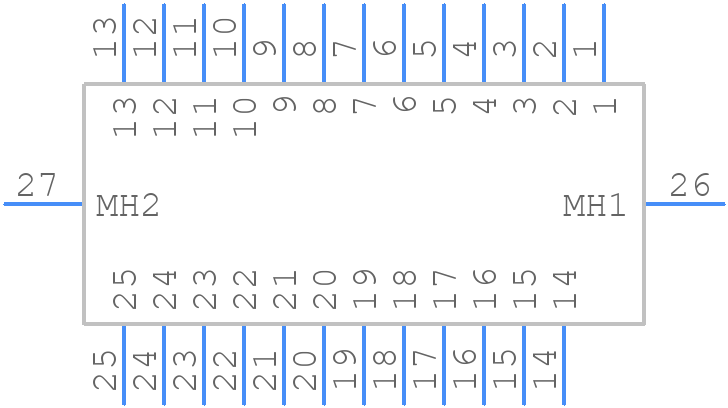

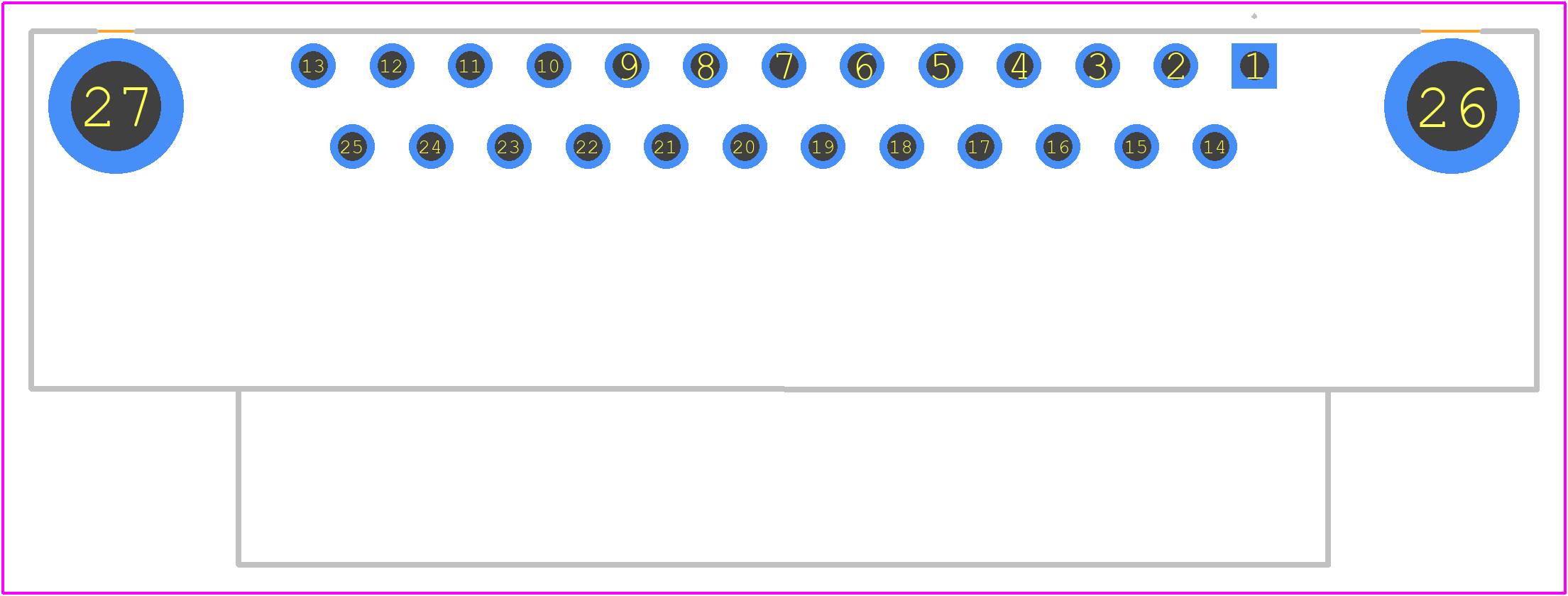

5788800-1 Details

• Manufacturer Part Number:

  5788800-1

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  21 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.5

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.494 inch

• Body Depth:

  0.497 inch

• Body Length:

  2.08 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Design:

  PREASSEM CONN

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.224 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  6A

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED INSERT

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  6 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  ZINC ALLOY

• Shell Size:

  3/B

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.74 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  2.224 N
