Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce noise and crosstalk.
The 5962-9076602M2A has a high power dissipation, so it's crucial to implement proper thermal management. Use a heat sink with a thermal interface material, and ensure good airflow around the device. You can also consider using thermal vias or a thermal pad on the PCB to improve heat dissipation.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, increased power consumption, and potentially even device failure. It's essential to ensure that the device operates within the specified temperature range, voltage, and current limits to maintain its performance and longevity.
To troubleshoot issues with the device, start by verifying that the PCB layout and component selection meet the recommended specifications. Check for proper power supply decoupling, and ensure that the input and output signals are within the specified ranges. Use oscilloscopes or signal analyzers to monitor the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
Yes, the 5962-9076602M2A is a high-frequency device, and it's essential to consider EMI/EMC during the design process. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Ensure that the PCB layout and component selection meet EMI/EMC requirements, and consider using EMI-absorbing materials or shielding cans to reduce radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-9076602M2A Overview

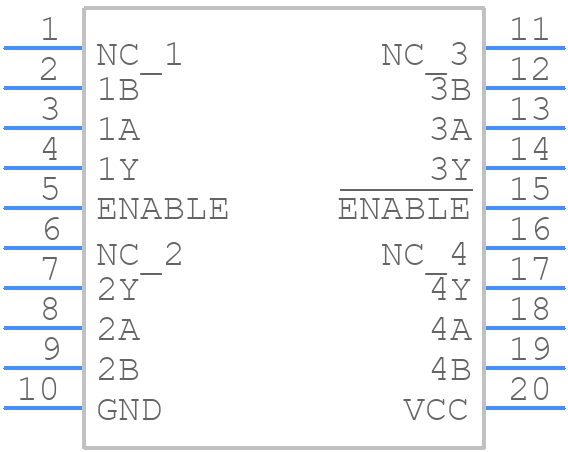

Use the download button to access the 5962-9076602M2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
