5962-9166703QYA - Texas Instruments

Description: 1A Low Dropout Adjustable Regulator, CFP Package,5V to 20V,,200 mV,300 mV,100 µA,-55 to 125C

Download 5962-9166703QYA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

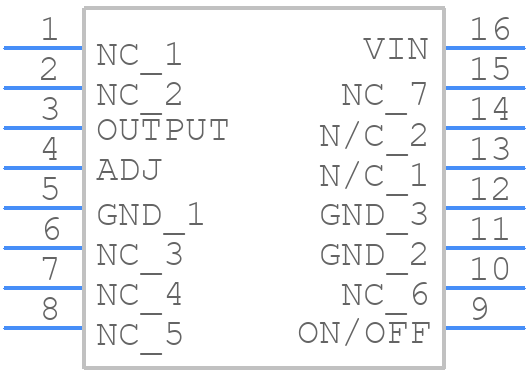

5962-9166703QYA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
5962-9166703QYA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NAC0016A_2025-1
click to zoom
3D Models
5962-9166703QYA - Texas Instruments - 3D model - Small Outline Packages - NAC0016A_2025-1
click to zoom

5962-9166703QYA Details

  • Manufacturer Part Number:

    5962-9166703QYA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-CDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    9.83 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    MIL-PRF-38535 Class Q

  • Seated Height-Max:

    2.03 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Dose:

    100k Rad(Si) V

  • Voltage Tolerance-Max:

    5%

  • Width:

    6.35 mm

5962-9166703QYA Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Use thermal interface material (TIM) and a heat sink if possible.
  • Use a shielded enclosure, keep signal traces short, and use decoupling capacitors. Ensure a common ground plane and use EMI filters or ferrite beads on I/O lines. Follow TI's EMC guidelines and consult the application note 'EMC Design Considerations for TI's 5962-9166703QYA'.
  • The 5962-9166703QYA is designed for high-reliability applications. TI provides a failure-in-time (FIT) rate of <10 FITs per billion device-hours. Consult the reliability report and follow TI's recommended usage guidelines to ensure optimal performance.
  • The 5962-9166703QYA is not specifically designed for radiation-hardened or space-grade applications. However, TI offers radiation-hardened versions of similar devices. Consult TI's radiation-hardened product portfolio and application notes for more information.
  • Store devices in their original packaging, away from direct sunlight and moisture. Handle devices by the body, avoiding static-sensitive areas. Follow TI's recommended storage and handling guidelines to prevent damage and ensure long-term reliability.
