Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature ranges. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
The '5962' prefix indicates that this device is a radiation-hardened, high-reliability component, designed for use in aerospace and defense applications. This prefix does not affect the device's electrical performance but rather indicates its enhanced ruggedness and reliability.
Yes, although the 5962L9583401VZA is designed for aerospace and defense applications, its electrical performance and characteristics make it suitable for use in other high-reliability applications, such as industrial, medical, or automotive systems.
The 'VZA' and 'VZB' suffixes indicate different temperature ranges and screening levels. The 'VZA' suffix corresponds to a -55°C to 125°C temperature range, while the 'VZB' suffix corresponds to a -40°C to 100°C temperature range. The 'VZA' suffix also implies more stringent screening and testing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962L9583401VZA Overview

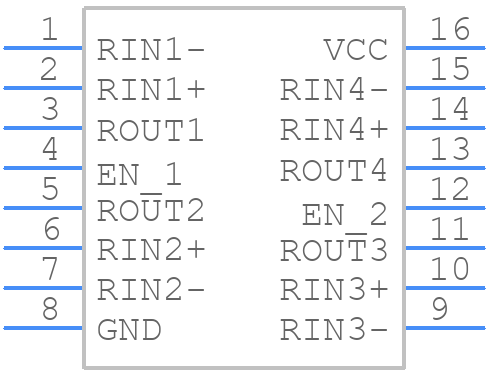

Use the download button to access the 5962L9583401VZA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962L,
or try a keyword search, such as Line Driver or Receivers
