Skyworks provides a recommended PCB layout and land pattern in their application note AN-2004, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The 599AHB001054DG has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device.
The recommended input and output matching network can be found in the Skyworks application note AN-2004. The matching network is critical to achieve optimal gain, return loss, and linearity. Skyworks also provides a simulation model that can be used to optimize the matching network.
The recommended biasing conditions can be found in the datasheet. It's essential to follow the recommended biasing conditions to ensure optimal performance, including gain, linearity, and power consumption.
Skyworks provides reliability data, including MTBF (Mean Time Between Failures), in their reliability report, which can be found on their website. The MTBF is typically in the range of hundreds of thousands to millions of hours, depending on the operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
599AHB001054DG Overview

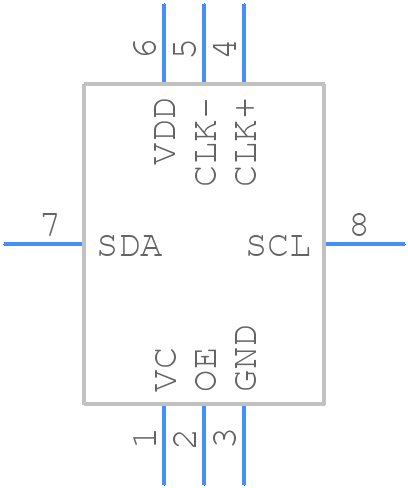

Use the download button to access the 599AHB001054DG schematic symbol, PCB footprint, and 3D model.
