5CEBA4U19C8N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone V E 1848 LABs 224 IOs

Download 5CEBA4U19C8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5CEBA4U19C8N - Intel - PCB symbol
click to zoom
PCB Footprints

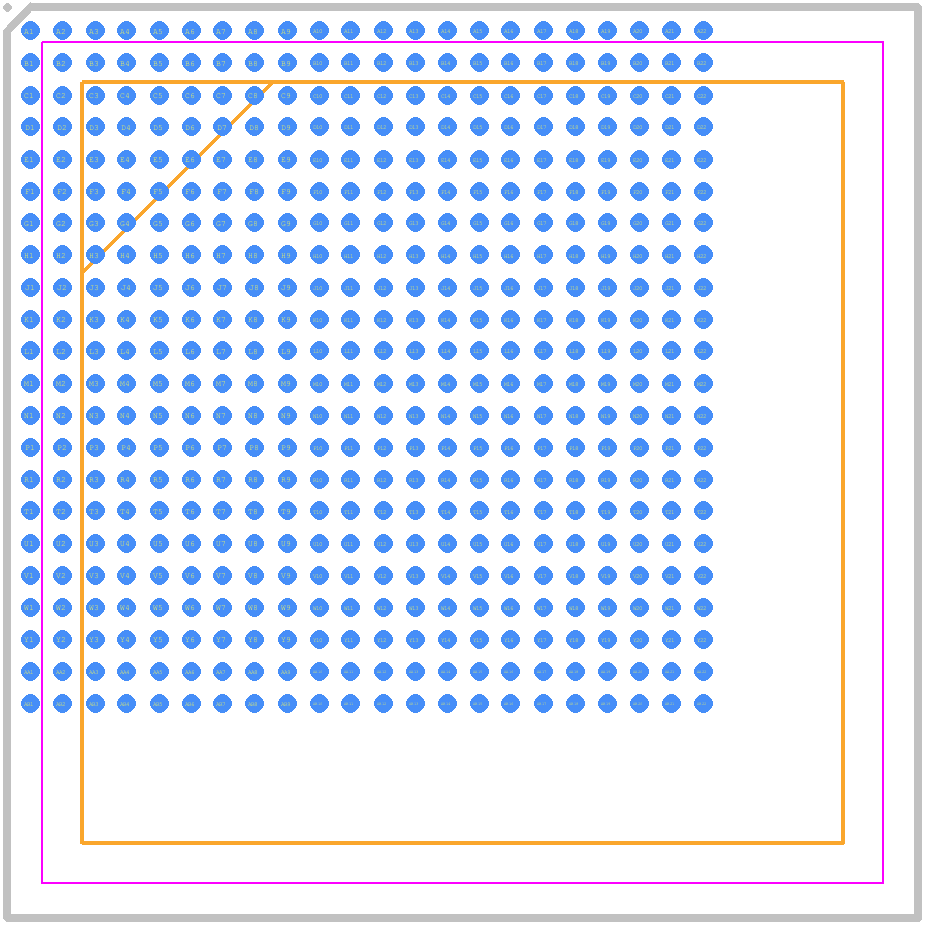

5CEBA4U19C8N - Intel PCB footprint - BGA - BGA - 484-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.90
click to zoom
3D Models
5CEBA4U19C8N - Intel - 3D model - BGA - 484-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.90
click to zoom

5CEBA4U19C8N Details

  • Manufacturer Part Number:

    5CEBA4U19C8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, UBGA-484

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B484

  • Length:

    19 mm

  • Number of Inputs:

    224

  • Number of Logic Cells:

    49000

  • Number of Outputs:

    224

  • Number of Terminals:

    484

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1848 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA484,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max:

    1.13 V

  • Supply Voltage-Min:

    1.07 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 28 nm

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

5CEBA4U19C8N Frequently Asked Questions (FAQs)

  • Intel recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • Intel recommends a power-up sequence of VCCIO, then VCC, and finally VREF. A minimum delay of 10 ms is recommended between each power-up stage to ensure proper device operation.
  • Intel recommends limiting power rail overshoot to 10% of the nominal voltage to prevent device damage. Exceeding this limit may cause permanent damage to the device.
  • Intel recommends using synchronizers or FIFOs to handle clock domain crossing. Additionally, ensure that clock frequencies are within the recommended specifications to prevent metastability issues.
  • Intel recommends using a configuration device, such as an external flash or a microcontroller, to configure the 5CEBA4U19C8N during power-up. This ensures that the device is properly configured before entering user mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5CEBA4U19C8N Overview

Use the download button to access the 5CEBA4U19C8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5CEBA, or try a keyword search, such as Field Programmable Gate Arrays
