Intel recommends a 4-6 layer PCB stackup with a minimum of two power planes and two ground planes. A detailed layout guide is available in the Cyclone V SoC FPGA Development Kit User Guide.
Use the PowerPlay Early Power Estimator (EPE) tool to estimate power consumption. Implement power-saving techniques like clock gating, dynamic voltage and frequency scaling, and use the low-power modes (e.g., sleep, hibernate) when possible.
The 5CSEBA2U23C8SN has a maximum junction temperature of 100°C. Ensure good airflow, use a heat sink if necessary, and follow Intel's thermal management guidelines to prevent overheating.
Use a reliable configuration device (e.g., EPCQ-L), implement a robust boot process with error detection and correction, and consider using a boot loader or firmware to ensure reliable configuration and boot-up.
Follow Intel's EMI and EMC guidelines, use proper shielding, and ensure good PCB layout practices to minimize EMI. Comply with relevant regulatory standards (e.g., FCC, CE) for your target market.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5CSEBA2U23C8SN Overview

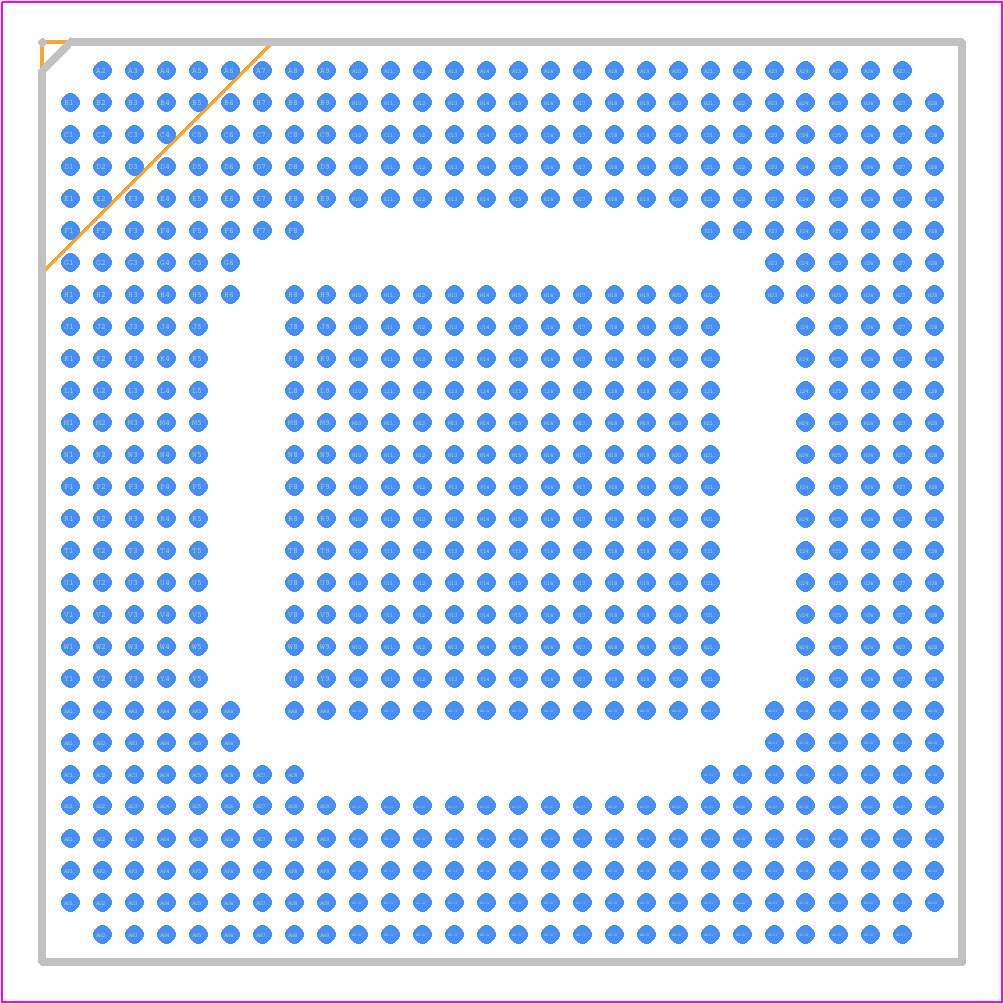

Use the download button to access the 5CSEBA2U23C8SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5CSEB,
or try a keyword search, such as Field Programmable Gate Arrays
