Intel provides a PCB design guide for Cyclone V FPGAs, which includes recommendations for layer stackup, signal routing, and decoupling. It's essential to follow these guidelines to ensure signal integrity and minimize electromagnetic interference (EMI).
To optimize power consumption, use Intel's PowerPlay power analysis tool to identify areas of high power consumption. Implement power gating, clock gating, and dynamic voltage and frequency scaling (DVFS) to reduce power consumption. For thermal management, ensure proper heat sink design, thermal interface material selection, and airflow management.
Implement a secure boot process using Intel's Secure Boot mechanism. Use encryption and secure key storage to protect sensitive data. Ensure secure communication protocols, such as SSL/TLS, are used for data transmission. Regularly update your design with security patches and follow Intel's security guidelines.
Use Intel's SignalTap II logic analyzer to capture and analyze signals within the FPGA. Implement debug ports and use Intel's Debug Toolkit to access and debug the FPGA. Utilize the FPGA's built-in debugging features, such as the System Console and the Debug Module.
The HPS is a dual-core ARM Cortex-A9 processor. Be aware of its limitations, such as memory bandwidth and cache size. Ensure proper synchronization and communication between the HPS and FPGA fabric. Use Intel's SoC Embedded Design Suite (EDS) to develop and optimize HPS-based designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5CSEBA5U23C7N Overview

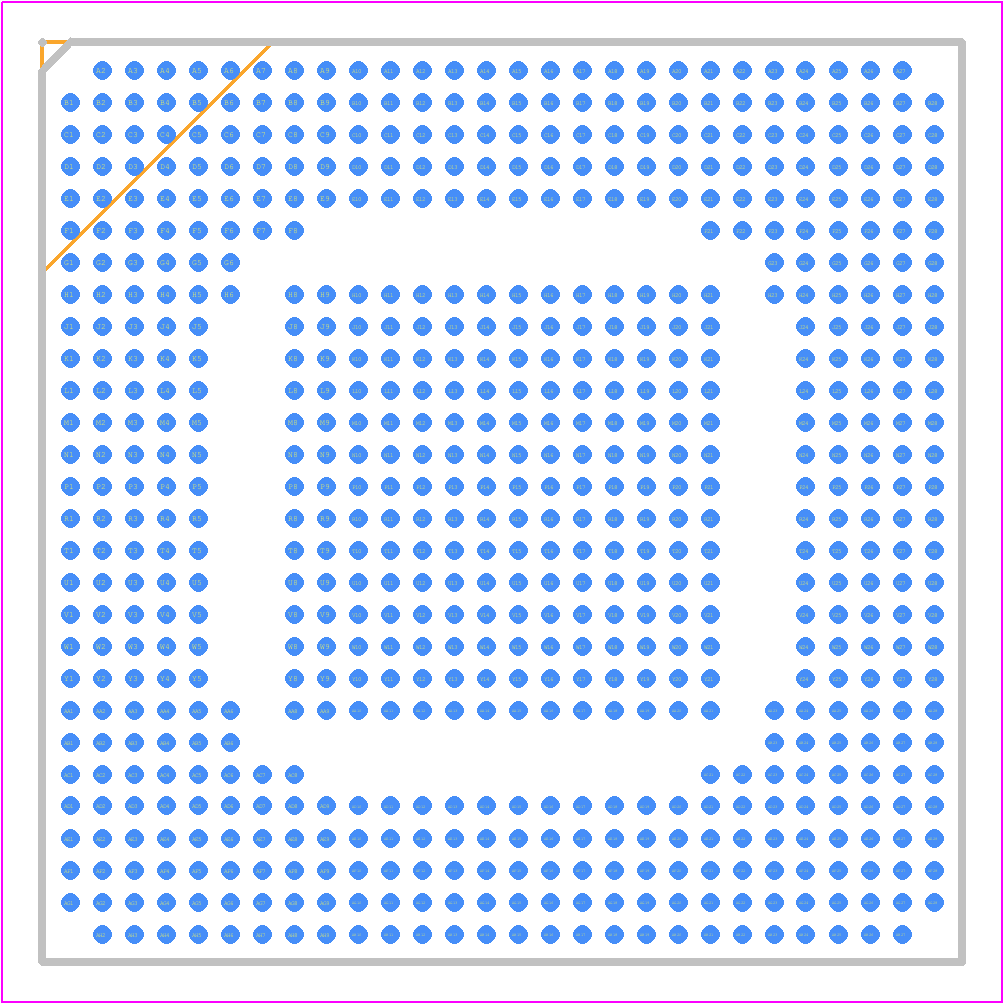

Use the download button to access the 5CSEBA5U23C7N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5CSEB,
or try a keyword search, such as Field Programmable Gate Arrays
