629-9W4-240-4T3 - EDAC

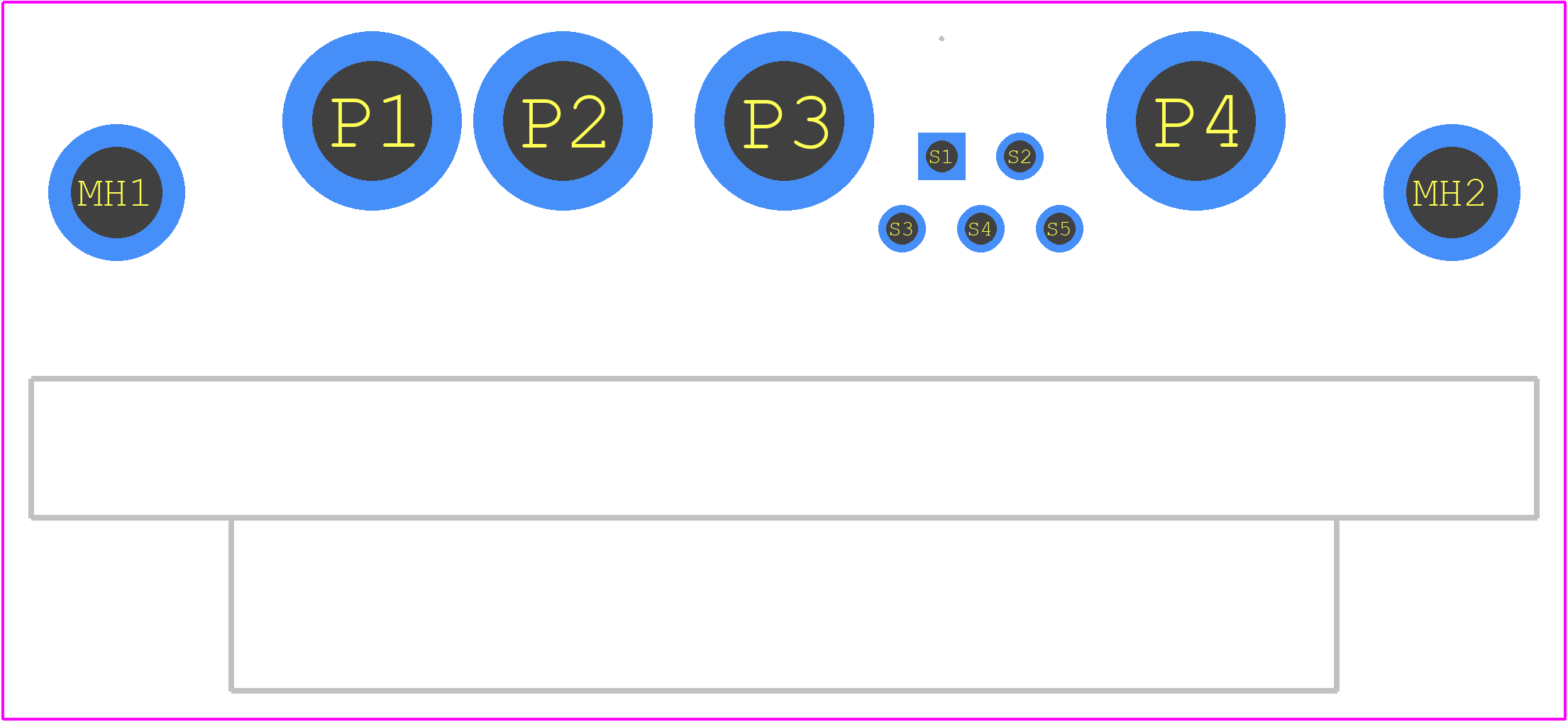

629-9W4-240-4T3 Details

• Manufacturer Part Number:

  629-9W4-240-4T3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  EDAC Inc

• YTEOL:

  9

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS IS 6.72

• Board Mounting Option:

  BRACKET, BOARD LOCK

• Body Breadth:

  0.492 inch

• Body Depth:

  0.614 inch

• Body Length:

  2.089 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Arrangement:

  S5P4

• Contact Gender:

  MALE

• Contact Pattern:

  MIXED

• Contact Resistance:

  10 mΩ

• Contact Style:

  HYBRID

• Dielectric Withstanding Voltage:

  1414VAC V

• Durability:

  50 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE/POLYESTER

• Mating Contact Pitch:

  0.109 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  MIXED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Power):

  40 A

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0
