653L5003I2T footprint, schematic symbol and 3D model by CTS

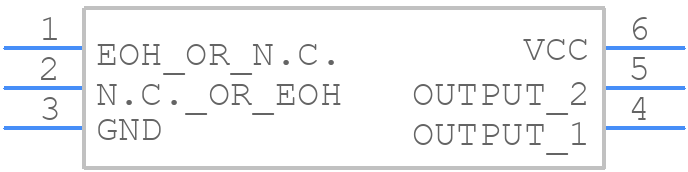

Symbol

PCB Footprints

3D Models

653L5003I2T Details

Manufacturer Part Number:
653L5003I2T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
12 Weeks
Manufacturer:
CTS Corporation
YTEOL:
6
Additional Feature:
STANDBY; ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT; TR, 7 INCH
Fall Time-Max:
0.7 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
50 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
CERAMIC
Physical Dimension:
5.0mm x 3.2mm x 1.2mm
Rise Time-Max:
0.7 ns
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Gold Flash (Au) - with Nickel (Ni) barrier

The recommended operating temperature range for the 653L5003I2T is -40°C to +85°C.
To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 0.01μF to 0.1μF capacitor and provide a stable voltage supply within the recommended operating range.
The typical power consumption of the 653L5003I2T is around 20mA, but this can vary depending on the specific application and operating conditions.
Yes, the 653L5003I2T is designed to operate in high-vibration environments and can withstand vibrations up to 20G.
To troubleshoot issues with the oscillator's frequency output, check the power supply voltage, ensure proper decoupling, and verify that the oscillator is properly connected to the load. If issues persist, consult the datasheet or contact CTS Corporation's technical support.
