6600330-4 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Power Positions 2 | Number of Signal Positions 24 | Mating & Unmating Configuration Sequencing | Number of Rows 4 | Number of Positions 26 | Contact Features: Contact Mating Area Plating Material Thickness .076 MICM | Contact Underplating Material Thickness 5.97 MICM | Contact Underplating Material Nickel | Contact Type Pin | Contact Mating Area Plating Material Gold Flash over Palladium Nickel | Power Contact Base Material Tin | Contact Mat

Download 6600330-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

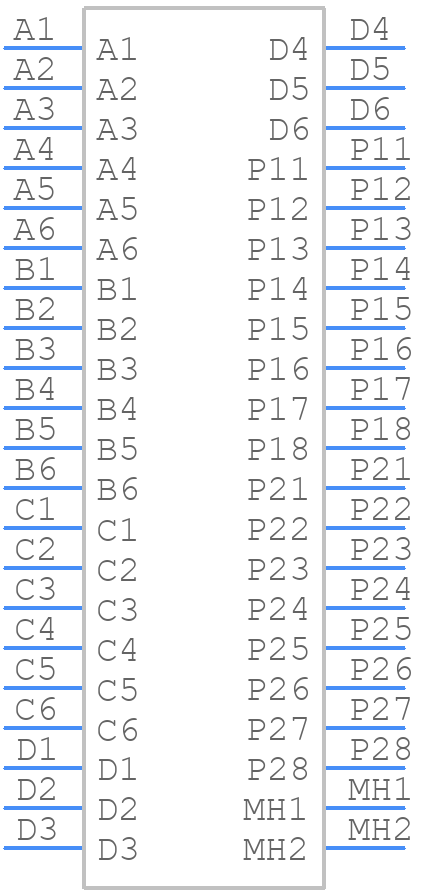

6600330-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

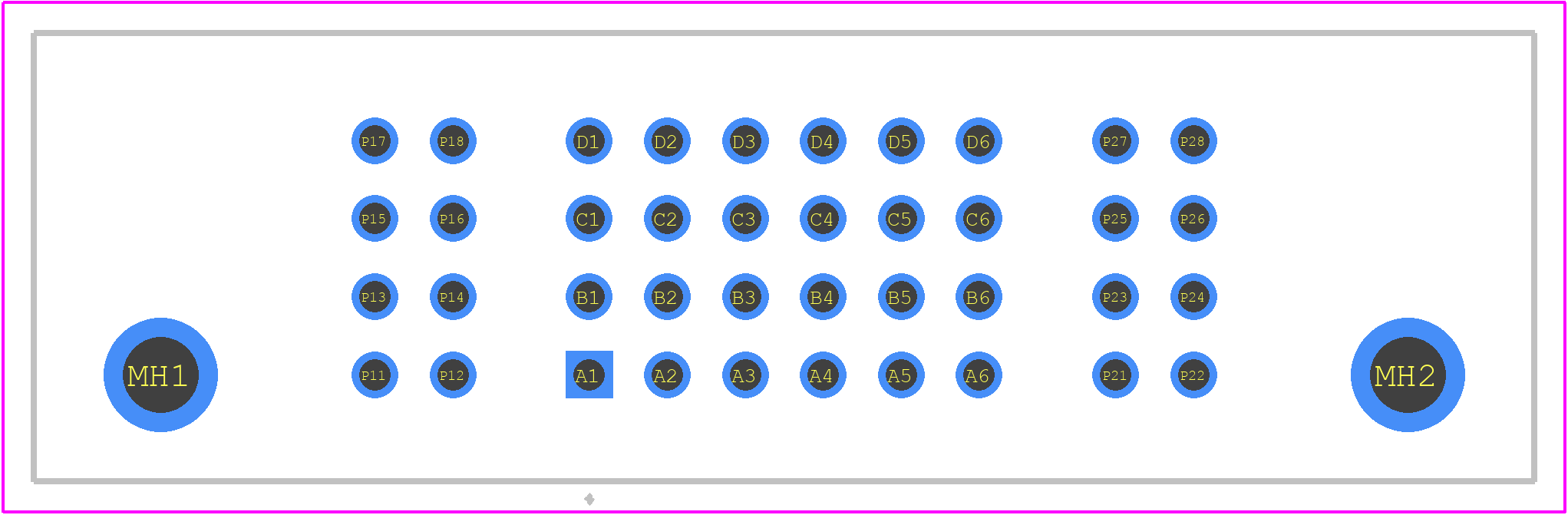

6600330-4 - TE Connectivity PCB footprint - Other - Other - 6600330-4-1
click to zoom
3D Models
6600330-4 - TE Connectivity - 3D model - Other - 6600330-4-1
click to zoom

6600330-4 Details

  • Manufacturer Part Number:

    6600330-4

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S24P2

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    42A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    42 A

  • Rated Voltage:

    60 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.235 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0
