- Part Number 66AK2G12ABY100
- Manufacturer Texas Instruments
- Pin Count 625
- Part Category Integrated Circuit
- Package Category BGA

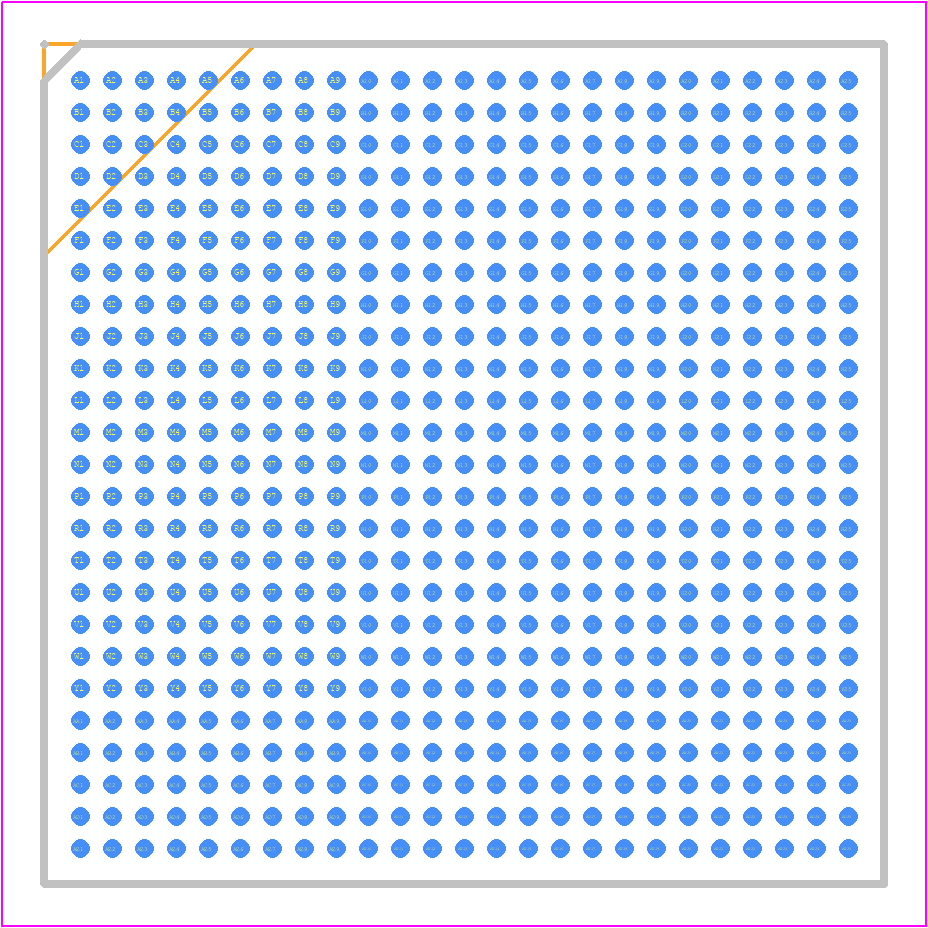

- Footprint Name BGA - 66AK2G12ABY100
- Released Date Sep 17, 2021
- Last Modified Date Jan 12, 2024 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
66AK2G12ABY100 Details
-
Manufacturer Part Number:
66AK2G12ABY100
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A992.C
-
HTS Code:
8542.31.00.75
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
JESD-30 Code:
S-PBGA-B625
-
JESD-609 Code:
e1
-
Length:
21 mm
66AK2G12ABY100 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application report (SLVA626) for optimal performance.
-
The power supply design should ensure a stable voltage supply to the device. TI recommends using a multi-layer PCB with a solid ground plane, and decoupling capacitors should be placed close to the power pins. A 4-layer PCB with a power plane, ground plane, and two signal layers is recommended.
-
The maximum operating frequency of the 66AK2G12ABY100 is 1.2 GHz, but it can be overclocked to 1.5 GHz with proper cooling and power management.
-
Thermal management is critical for the 66AK2G12ABY100. TI recommends using a heat sink with a thermal interface material, and ensuring good airflow around the device. The thermal design should be validated using thermal simulation tools and thermal testing.
-
The recommended clocking scheme for the 66AK2G12ABY100 is to use a single clock source for all domains, and to use a clock buffer to distribute the clock signal to all parts of the device.
