Part Image

66AK2G12ABY60 - Texas Instruments

Description: Digital Signal Processors & Controllers - DSP, DSC High performance multicore DSP+Arm - 1x Arm A15 cores, 1x C66x DSP core 625-FCBGA 0 to 90

Download 66AK2G12ABY60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
66AK2G12ABY60 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

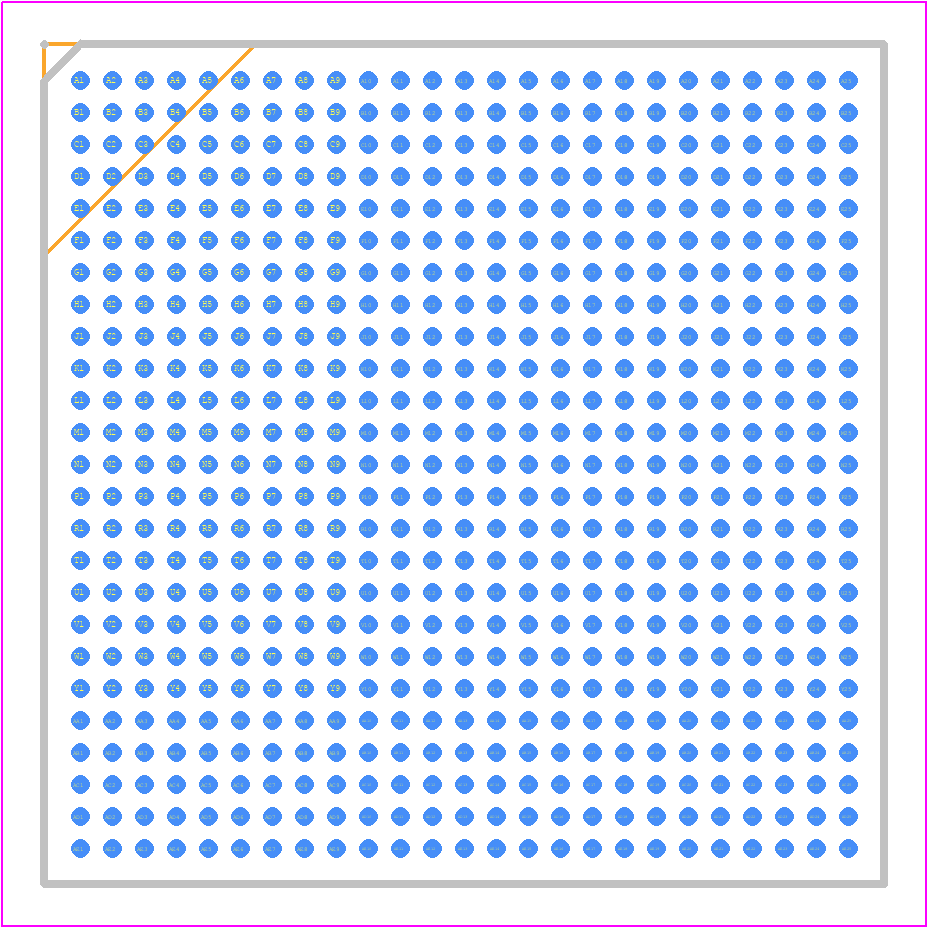

66AK2G12ABY60 - Texas Instruments PCB footprint - BGA - BGA - ABY0625A_2021
click to zoom
3D Models
66AK2G12ABY60 - Texas Instruments - 3D model - BGA - ABY0625A_2021
click to zoom

66AK2G12ABY60 Details

  • Manufacturer Part Number:

    66AK2G12ABY60

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCCSP-625

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B625

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA625,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.56 mm

  • Supply Voltage-Max:

    0.945 V

  • Supply Voltage-Min:

    0.855 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

66AK2G12ABY60 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application report (SLVA626) for optimal performance.
  • The power supply design should ensure a stable voltage supply to the device. Use a low-ESR capacitor and a ferrite bead or a power inductor to filter the power supply noise. Also, ensure the power supply voltage is within the recommended operating range.
  • The maximum operating frequency of the 66AK2G12ABY60 is 1.2 GHz, but it can be overclocked up to 1.5 GHz with proper cooling and power management.
  • Implement thermal management by using a heat sink, thermal interface material, and a fan to keep the device temperature within the recommended operating range (0°C to 90°C).
  • The recommended clocking scheme is to use a single clock source for the entire system, and to use a clock buffer or a clock generator to distribute the clock signal to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

66AK2G12ABY60 Overview

Use the download button to access the 66AK2G12ABY60 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
