Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLYT685) and user guides (SPRUHF7). It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
The 66AK2G12ABYA100 has a complex power management system. Refer to the Power Management chapter in the datasheet (SPRS866) and the Power Management User Guide (SPRUHF6) for detailed information on configuring the device for optimal power management. Additionally, TI provides a Power Management GUI tool to simplify the process.
When designing the DDR3/DDR3L memory interface, consider signal integrity, impedance matching, and layout guidelines. TI provides a DDR3/DDR3L Interface Design Guide (SPRUHF5) that covers these topics in detail. Additionally, use the TI-provided IBIS models to simulate and validate the design.
To optimize the ARM Cortex-A15 core's performance, refer to the ARM documentation (DDI0406) and the TI-provided documentation (SPRUHF4). Implementing techniques like cache optimization, pipeline optimization, and using the Neon coprocessor can significantly improve performance. Additionally, use the TI-provided software development tools to optimize and benchmark the system.
To design a reliable and efficient system, consider factors like power consumption, thermal management, and signal integrity. Implement techniques like power gating, dynamic voltage and frequency scaling, and using the device's built-in reliability features like ECC and parity checking. TI provides a System Design Guide (SPRUHF3) that covers these topics in detail.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2G12ABYA100 Overview

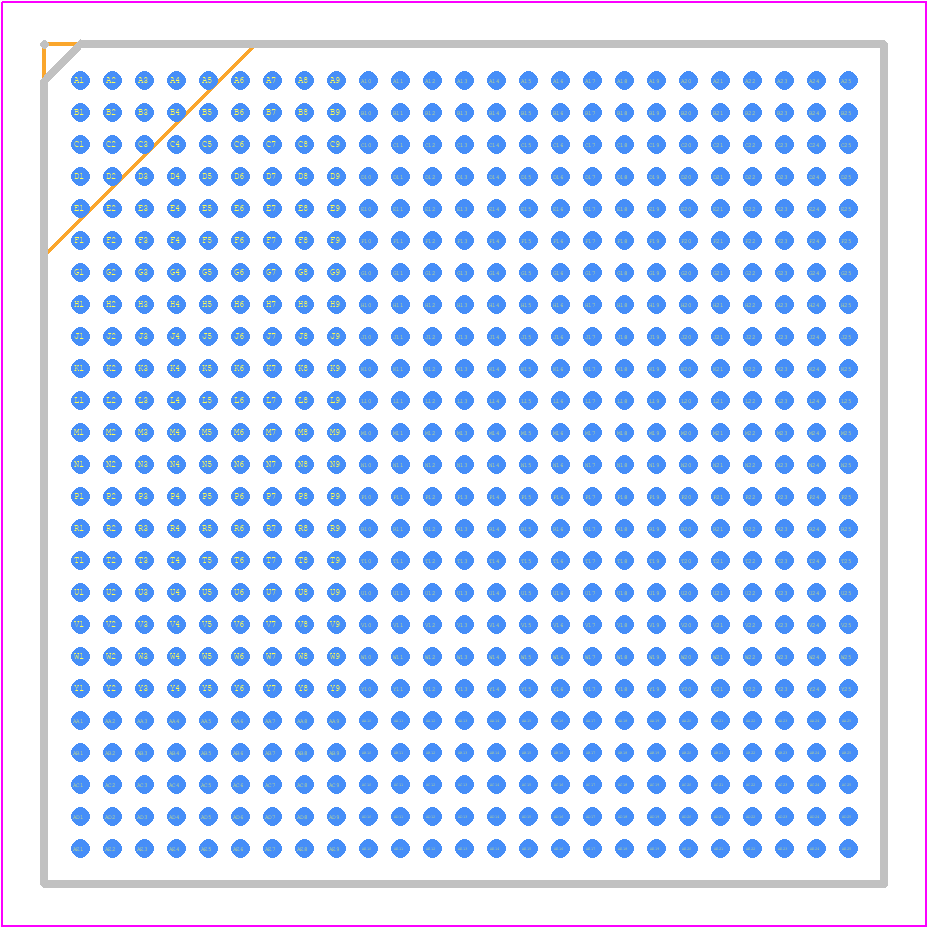

Use the download button to access the 66AK2G12ABYA100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
