- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 66AK2H06AAAW2
- Part Number 66AK2H06AAAW2
- Manufacturer Texas Instruments
- Pin Count 1517
- Part Category Integrated Circuit
- Package Category BGA

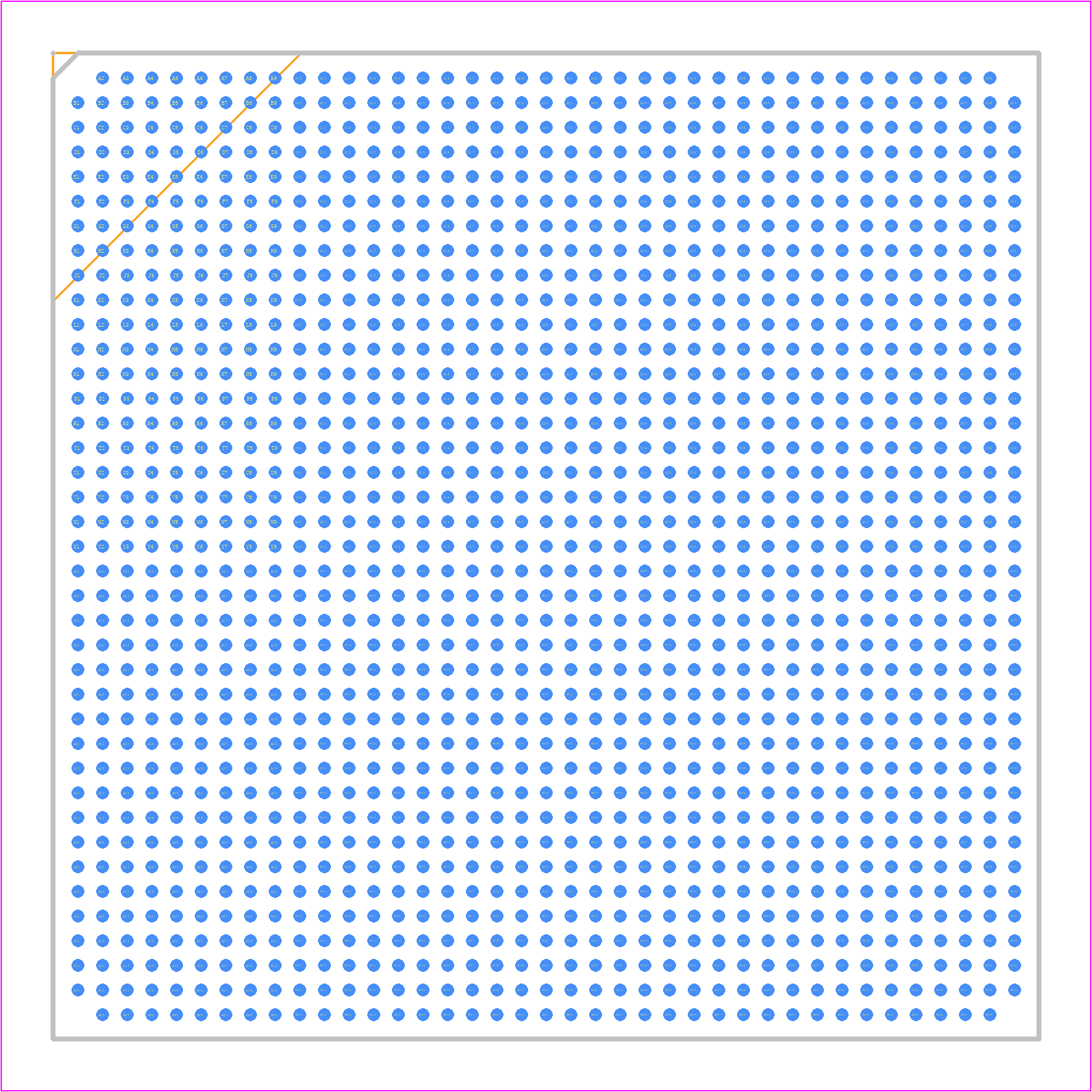

- Footprint Name BGA - AAW (S-PBGA_N1517)
- Released Date Nov 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
66AK2H06AAAW2 Details
-
Manufacturer Part Number:
66AK2H06AAAW2
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
BGA
-
Package Description:
PLASTIC, FCBGA-1517
-
Pin Count:
1517
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
66AK2H06AAAW2 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout guide in the datasheet, but it's essential to follow additional guidelines for high-speed design, such as using a solid ground plane, minimizing signal trace length, and using decoupling capacitors.
-
The 66AK2H06AAAW2 requires a well-regulated power supply with low noise and ripple. Use a high-quality voltage regulator, such as the TPS65938, and follow the recommended power supply design guidelines in the datasheet.
-
The 66AK2H06AAAW2 has an operating temperature range of -40°C to 100°C, but it's essential to consider the thermal design and heat dissipation to ensure reliable operation within this range.
-
To minimize power consumption, configure the device to use the lowest possible clock frequency, disable unused peripherals, and use the power-saving features, such as the low-power mode and dynamic voltage scaling.
-
The recommended settings for the DDR3 memory interface include using a clock frequency of 400 MHz or 533 MHz, setting the memory timing parameters according to the datasheet, and using a memory module with a speed grade of 1066 or higher.
Trust Checks
Community Provided
System Verified
Community Approved
66AK2H06AAAW2 Overview
Use the download button to access the 66AK2H06AAAW2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
