Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLAU522) and user guides (SPRUHF7). It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
The 66AK2H12AAAW24 has a complex power management system. Refer to the device's user guide (SPRUHF7) and power management guide (SLAU523) for detailed information on configuring the power domains, voltage regulators, and power-saving modes to achieve optimal power management.
Signal integrity is crucial for high-speed signals. Texas Instruments recommends following the guidelines in their signal integrity application note (SLAU525) for routing high-speed signals, such as DDR3/DDR4, PCIe, and SATA. This includes using controlled impedance, minimizing signal length, and avoiding signal crossing.
The boot process and firmware loading can be complex. Refer to the device's user guide (SPRUHF7) and boot loader user guide (SPRUHF8) for detailed information on implementing and verifying the boot process, including configuring the boot modes, loading firmware, and troubleshooting common issues.
EMI and EMC are critical considerations for the 66AK2H12AAAW24. Texas Instruments provides guidelines in their EMI and EMC application note (SLAU526) for minimizing EMI and ensuring EMC compliance, including using shielding, filtering, and proper PCB layout techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H12AAAW24 Overview

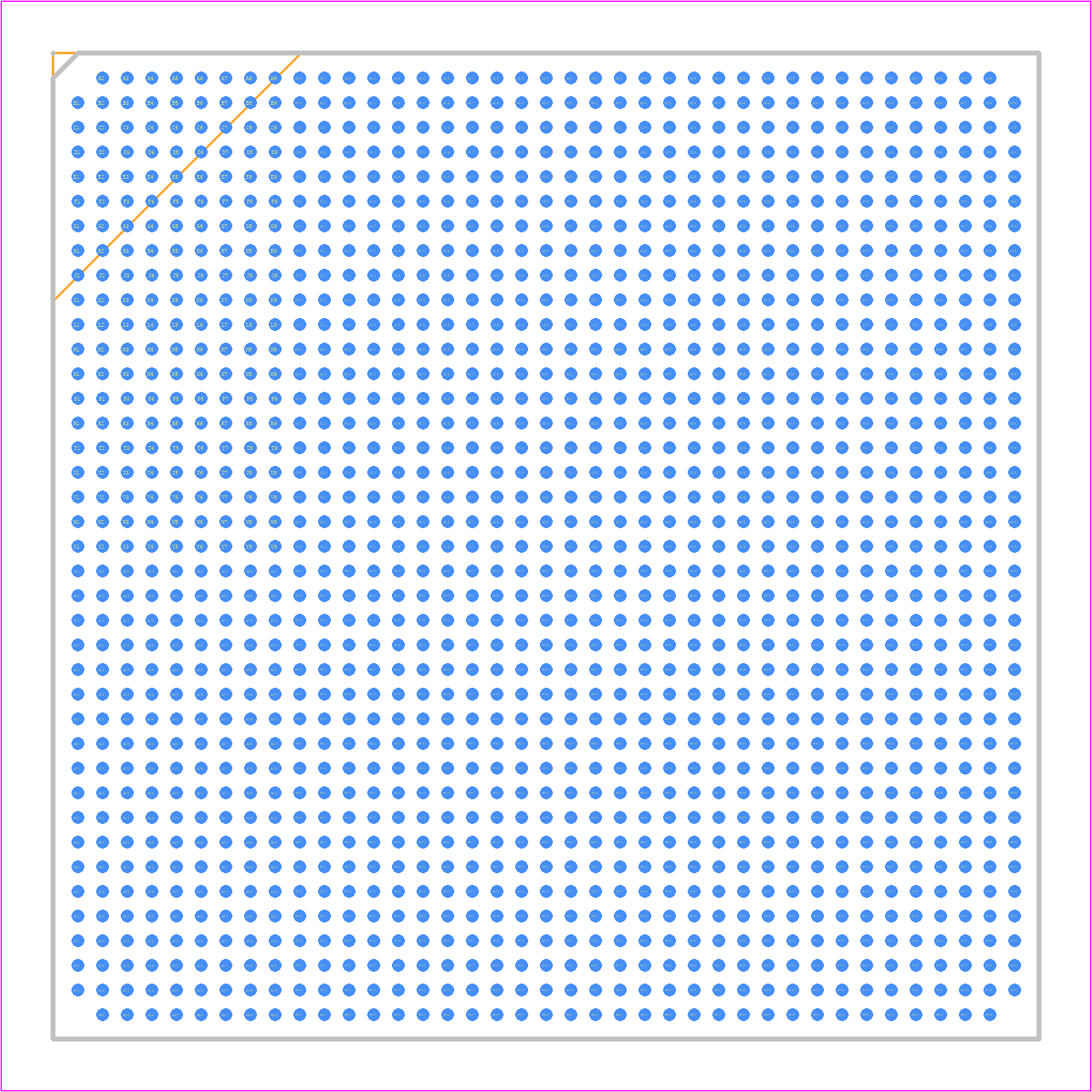

Use the download button to access the 66AK2H12AAAW24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
