For optimal performance, it's recommended to follow Texas Instruments' PCB layout guidelines, including using a 4-layer board with a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure good thermal management by providing adequate heat sink and airflow.
To prevent damage or malfunction, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Ensure that the power supplies are ramped up and down slowly, and that the device is properly reset during power-up.
To prevent ESD damage, handle the device by the body or use an anti-static wrist strap, and store it in an anti-static bag or container. Ensure that the workspace and equipment are also ESD-protected.
To troubleshoot and debug issues, use the device's built-in debug features, such as the JTAG interface, and utilize Texas Instruments' development tools and software. Consult the datasheet and application notes for guidance on debugging and troubleshooting.
Operating the device outside of the recommended operating conditions can lead to reduced performance, reliability, and lifespan. To mitigate potential risks, ensure that the device is operated within the specified temperature, voltage, and frequency ranges, and consider implementing protective measures such as over-voltage protection and thermal monitoring.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H14AAAWA24 Overview

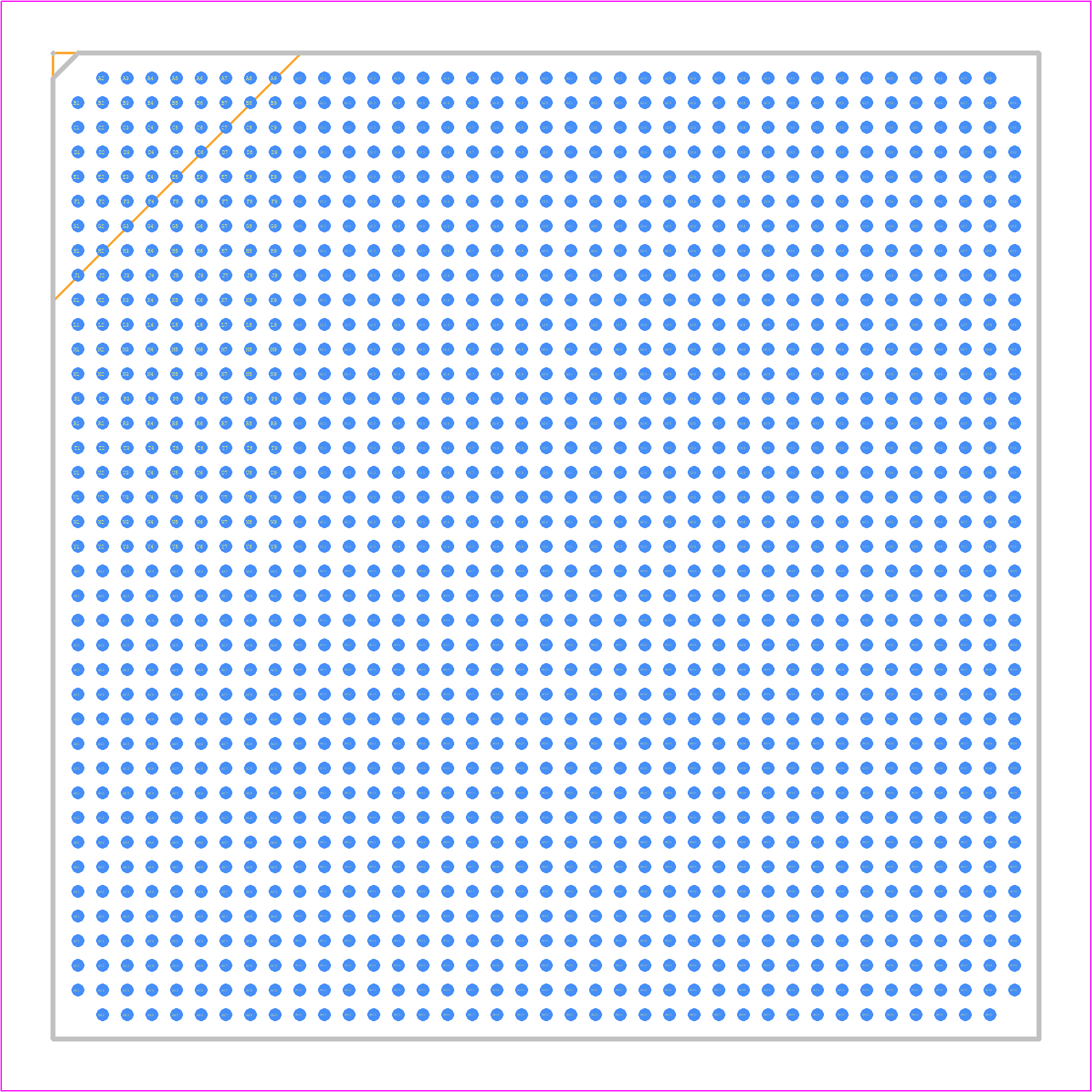

Use the download button to access the 66AK2H14AAAWA24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
