Texas Instruments recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A thermal pad on the bottom of the device should be connected to the ground plane.
To optimize the DDR3 memory interface, ensure that the memory clock frequency is set to 400 MHz or higher, and use a 32-bit or 64-bit data bus width. Also, ensure that the memory timing parameters, such as CAS latency and RAS-to-CAS delay, are set according to the DDR3 memory module's specifications.
The recommended power-up sequence is to apply power to the core voltage (VDD_CORE) first, followed by the input/output voltage (VDD_IO). Ensure that the power supplies are stable and within the recommended voltage ranges before applying clock signals or enabling the device.
Implement a reliable boot process by using a boot loader that can recover from errors, such as a failed boot or corrupted firmware. Use a secure boot mechanism, such as a digital signature, to ensure the authenticity and integrity of the firmware.
The device has a maximum junction temperature (TJ) of 100°C. Ensure that the PCB design provides adequate thermal dissipation, such as through the use of thermal vias, heat sinks, or thermal interfaces. Also, ensure that the device is operated within the recommended temperature range to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H14DAAWA24 Overview

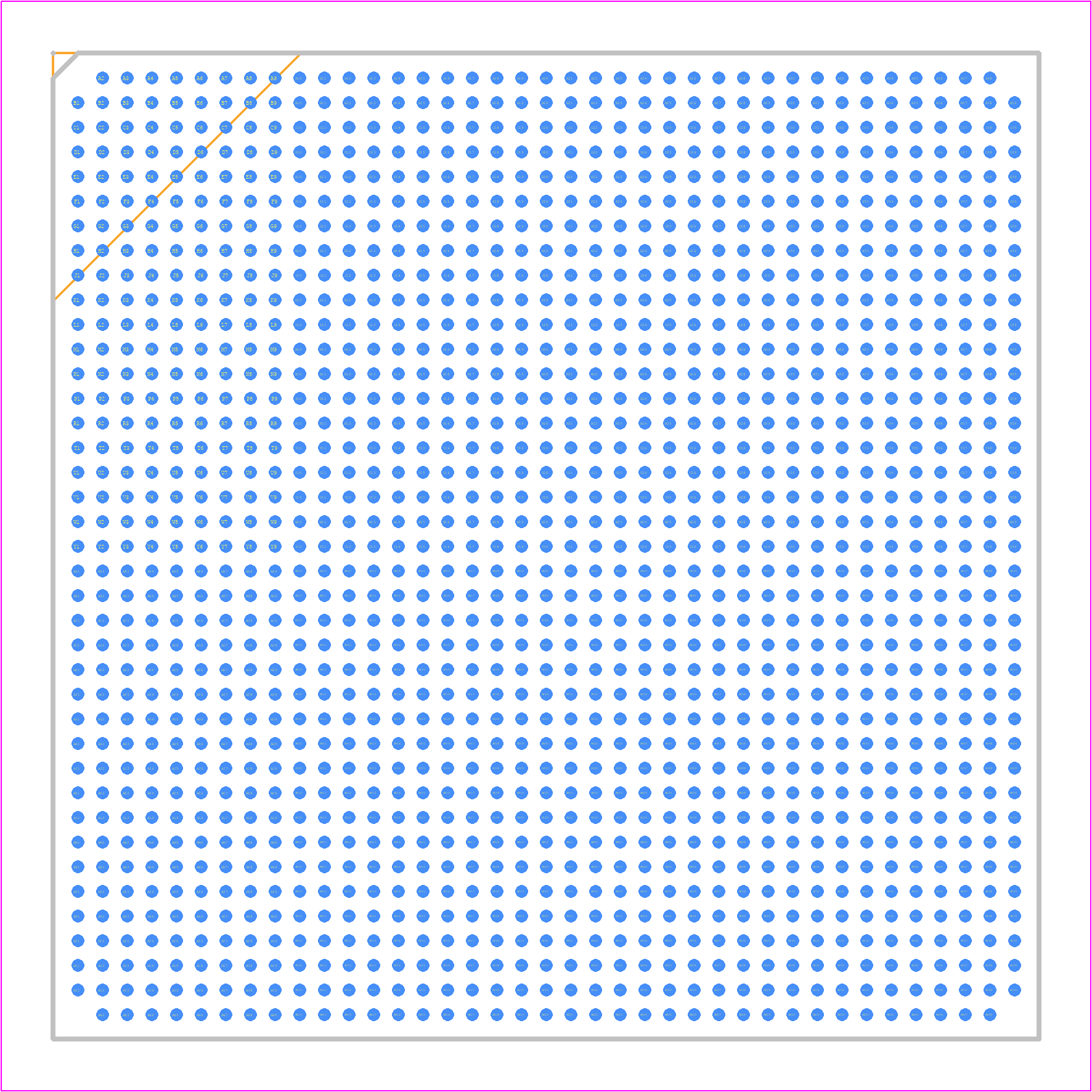

Use the download button to access the 66AK2H14DAAWA24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
