Texas Instruments recommends a 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to improve heat dissipation. A thermal pad on the bottom of the package should be connected to the ground plane.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal management techniques, such as heat sinks or fans, to maintain a safe operating temperature.
If the internal voltage regulator is not used, the device may not function correctly, and power consumption may increase. It's recommended to use the internal voltage regulator to ensure proper device operation and minimize power consumption.
To optimize power consumption, use the power-saving features of the 66AK2L06XCMSA, such as dynamic voltage and frequency scaling, and clock gating. Additionally, consider using low-power modes, such as idle or sleep modes, when the device is not in use.
To minimize EMI and ensure EMC, follow proper PCB layout and design practices, such as using shielding, filtering, and grounding techniques. Additionally, consider using EMI filters and shielding components in your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2L06XCMSA Overview

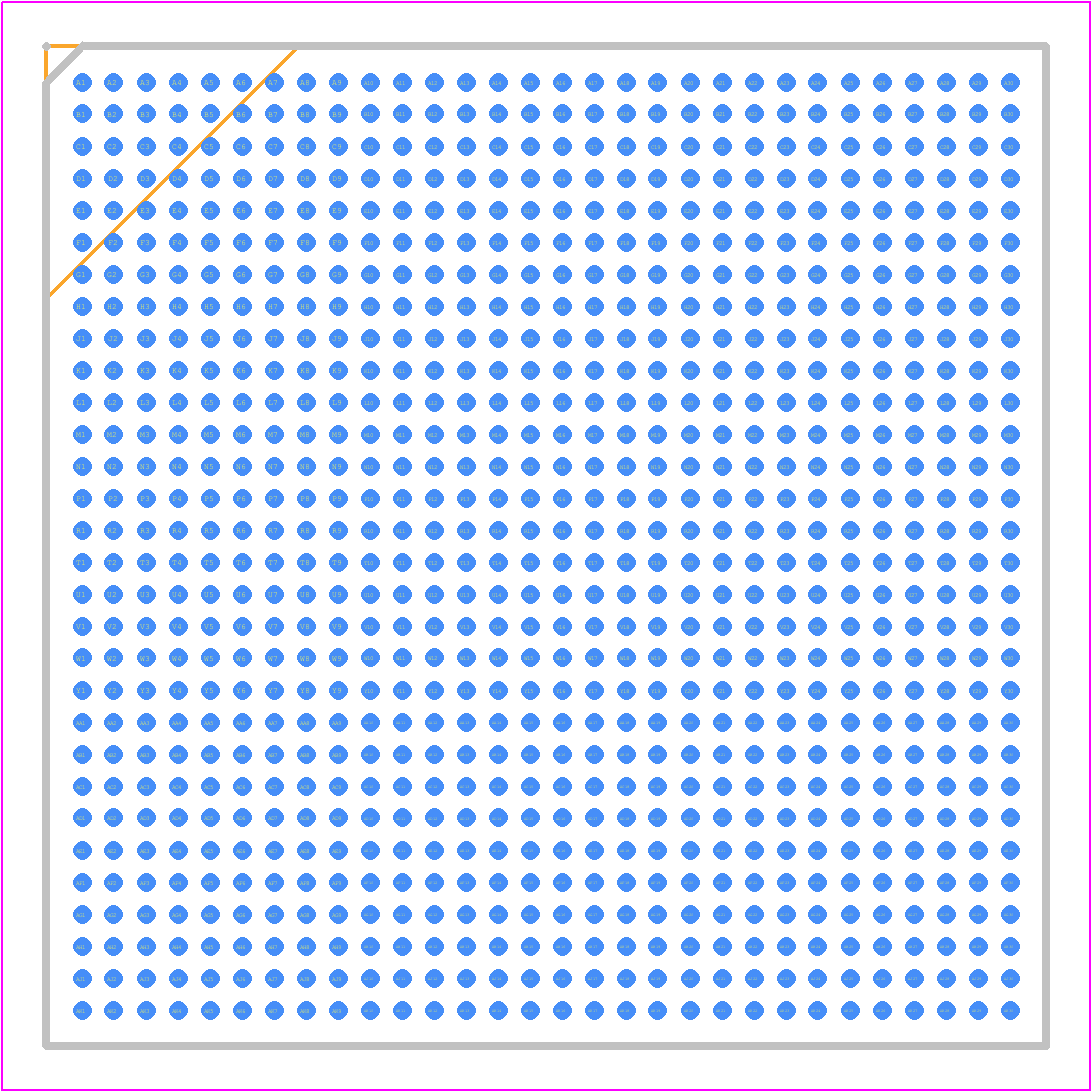

Use the download button to access the 66AK2L06XCMSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
