6N135 - Avago Technologies

Description: NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,3.5KV ISOLATION,DIP

Download 6N135 Model

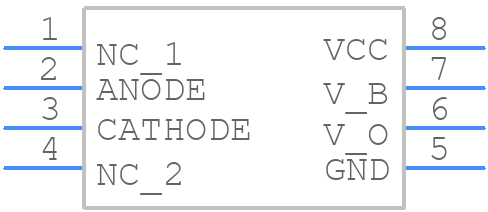

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
6N135 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom
3D Models
6N135 - Avago Technologies  - 3D model - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom

6N135 Details

  • Manufacturer Part Number:

    6N135

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    UL RECOGNIZED, CMOS COMPATIBLE, OPEN COLLECTOR

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    7%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.0000015 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

6N135 Frequently Asked Questions (FAQs)

  • The 6N135 can operate from -40°C to 100°C, but the performance may degrade at extreme temperatures. It's recommended to operate within the specified temperature range for optimal performance.
  • To ensure proper biasing, make sure to provide a sufficient voltage supply (VCC) and a suitable resistor value (R1) to set the LED current. A typical value for R1 is 1 kΩ, but this may vary depending on the specific application.
  • To minimize EMI, keep the 6N135 away from high-frequency signals and power lines. Use a ground plane and keep the optocoupler's pins as short as possible. A minimum spacing of 1 mm between the optocoupler and other components is recommended.
  • The 6N135 has a limited bandwidth of around 10 Mbps. For high-speed data transmission, consider using a faster optocoupler like the 6N137 or 6N138, which have bandwidths up to 50 Mbps and 100 Mbps, respectively.
  • When the input is floating or open-circuit, the 6N135's output may float or oscillate. To prevent this, add a pull-up or pull-down resistor to the output pin to ensure a stable logic level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N135 Overview

Use the download button to access the 6N135 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler

Parts related to 6N135

Showing 0 results

6N135 Alternates

Showing results

Image Part Number Model
Part Image 6N136 Broadcom Limited

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation, 1MBps

Part Image SFH6136 Infineon Technologies AG

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5300V Isolation, 1MBps

Part Image SFH6135 Siemens

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5300V Isolation, 1MBps

Part Image TLP651 Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation

Part Image TLP651(O) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation, 1MBps

For a full list of alternate parts for 6N135, check out Findchips.com
