6N135S-TA1 - Lite-On

Description: High Speed Optocouplers High Speed 1MBd Transistor Output

Download 6N135S-TA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

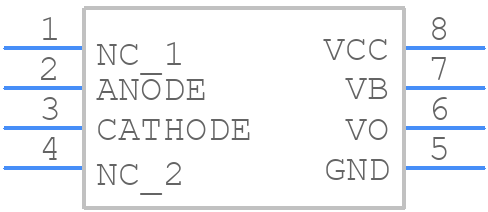

6N135S-TA1 - Lite-On - PCB symbol
click to zoom
PCB Footprints
6N135S-TA1 - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - 6N135S-TA1
click to zoom

6N135S-TA1 Details

  • Manufacturer Part Number:

    6N135S-TA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Max:

    0.0000015 s

  • Response Time-Nom:

    9e-7 ns

  • Surface Mount:

    YES

6N135S-TA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N135S-TA1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the 6N135S-TA1 is 5.5V, as specified in the datasheet.
  • To handle ESD protection for the 6N135S-TA1, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and to ensure that the device is stored in an ESD-protected environment.
  • The typical propagation delay time for the 6N135S-TA1 is around 2-3 μs, as specified in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N135S-TA1 Overview

Use the download button to access the 6N135S-TA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N135, or try a keyword search, such as Optocoupler
