6N136(F) - Toshiba

Description: Toshiba, 6N136(F) DC Input Transistor Output Optocoupler, Through Hole, 8-Pin DIP

Download 6N136(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

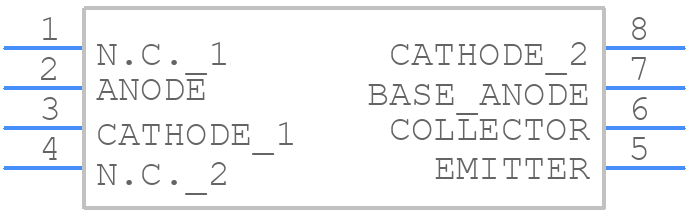

6N136(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
6N136(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
6N136(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

6N136(F) Details

  • Manufacturer Part Number:

    6N136(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    15%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    5e-7 ns

  • Surface Mount:

    NO

6N136(F) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N136(F) is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal design, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the 6N136(F) is 80 V, but it's recommended to operate within the specified voltage range to ensure reliability.
  • To prevent ESD damage, handle the 6N136(F) by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device.
  • The 6N136(F) is suitable for high-frequency applications up to 1 MHz, but it's essential to consider the device's bandwidth and rise/fall times to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N136(F) Overview

Use the download button to access the 6N136(F) schematic symbol, PCB footprint, and 3D model.
