6N136-300E - Avago Technologies

Description: Broadcom 6N136-300E DC Input Transistor Output Optocoupler, Surface Mount, 8-Pin PDIP

Download 6N136-300E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

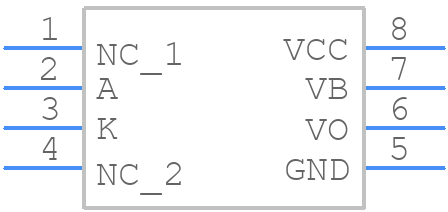

6N136-300E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
6N136-300E - Avago Technologies PCB footprint - Other - Other - HCPL-3180
click to zoom

6N136-300E Details

  • Manufacturer Part Number:

    6N136-300E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    19%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

6N136-300E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N136-300E is -40°C to 100°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curves.
  • The maximum allowable voltage for the 6N136-300E's input diode is 5V, but it's recommended to keep it below 4.5V for reliable operation.
  • While the 6N136-300E is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher frequencies, consider using a different optocoupler model.
  • To minimize EMI, use proper PCB layout techniques, such as separating the input and output circuits, using shielding, and keeping the optocoupler away from noise sources.
