6N137-500E - Avago Technologies

Description: BROADCOM LIMITED - 6N137-500E - Optocoupler, Digital Output, 1 Channel, 3.75 kV, 10 Mbaud, Surface Mount DIP, 8 Pins

Download 6N137-500E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

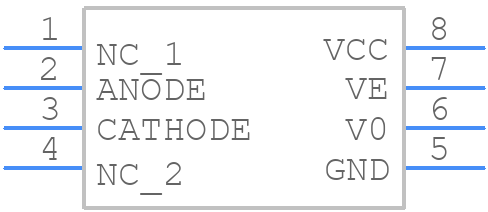

Symbol
6N137-500E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
6N137-500E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-PIN DIP
click to zoom
3D Models
6N137-500E - Avago Technologies - 3D model - Dual-In-Line Packages - 8-PIN DIP
click to zoom

6N137-500E Details

  • Manufacturer Part Number:

    6N137-500E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.49.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    1e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

6N137-500E Frequently Asked Questions (FAQs)

  • A good PCB layout for the 6N137-500E should minimize the distance between the LED and the photodiode, and ensure that the LED anode and cathode are not swapped. A ground plane under the device can also help reduce noise.
  • To ensure reliable operation over the full temperature range, ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients and thermal stress.
  • The recommended input current for the LED is typically between 1-10mA, depending on the specific application and required switching speed. Higher currents can be used, but may reduce the device's lifespan.
  • ESD protection for the 6N137-500E can be achieved through the use of ESD protection diodes, TVS diodes, or other ESD protection devices. It is also important to follow proper handling and storage procedures to prevent ESD damage.
  • The typical propagation delay for the 6N137-500E is around 10-20μs, depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N137-500E Overview

Use the download button to access the 6N137-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N137, or try a keyword search, such as Optocoupler
