6N137M - onsemi

Description: Logic gate output; U.L. recognized (File # E90700, Vol. 2); Fan-out of 8 over -40°C to +85°C; Superior CMR – 10 kV/µs; Wired OR-open collector; Strobable output; Very high speed – 10 MBit/s

Download 6N137M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

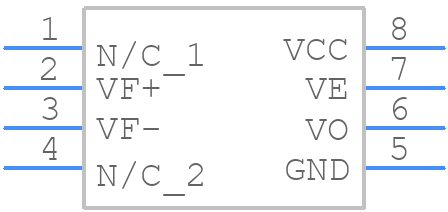

6N137M - onsemi - PCB symbol
click to zoom
PCB Footprints

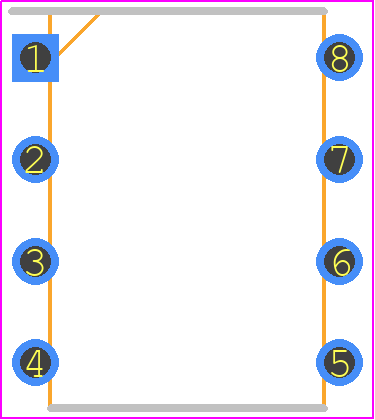

6N137M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PDIP
click to zoom
3D Models
6N137M - onsemi - 3D model - Dual-In-Line Packages - 8 PDIP
click to zoom

6N137M Details

  • Manufacturer Part Number:

    6N137M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

6N137M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
  • The recommended input current for the 6N137M is typically in the range of 1-10mA, depending on the specific application requirements. Exceeding the recommended current can reduce the device's lifespan.
  • While the 6N137M can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher-frequency applications, a different optocoupler with a higher bandwidth may be required.
  • The correct resistor value for the input pin depends on the specific application requirements, such as the input voltage and desired current. A general rule of thumb is to choose a resistor value that limits the input current to the recommended range (1-10mA).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N137M Overview

Use the download button to access the 6N137M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N137, or try a keyword search, such as Optocoupler
