6N138-X009 - Vishay

Description: Vishay 6N138-X009 DC Input, Darlington Output Optocoupler, SMT SMD-8 8

Download 6N138-X009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

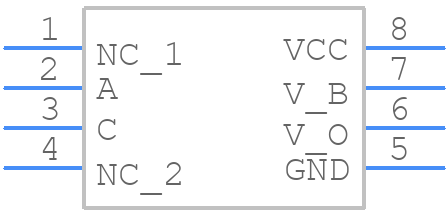

Symbol
6N138-X009 - Vishay - PCB symbol
click to zoom
PCB Footprints
6N138-X009 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 6N138-X009
click to zoom
3D Models
6N138-X009 - Vishay - 3D model - Small Outline Packages - 6N138-X009
click to zoom

6N138-X009 Details

  • Manufacturer Part Number:

    6N138-X009

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SMD, 8 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE, UL APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    300%

  • Data Rate-Nom:

    0.1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000035 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

6N138-X009 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N138-X009 is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
  • To ensure proper soldering and mounting, follow the recommended soldering profile and handling procedures outlined in the datasheet. Additionally, use a solder with a melting point above 220°C to prevent damage to the device. It's also crucial to handle the device by the body, avoiding touching the leads or pins to prevent electrostatic discharge (ESD) damage.
  • The maximum allowable voltage for the 6N138-X009 is 5.5V for the input side (anode-cathode) and 30V for the output side (collector-emitter). Exceeding these voltage limits may damage the device or affect its performance.
  • The 6N138-X009 is suitable for low-to-medium frequency applications up to 1 MHz. For high-frequency applications above 1 MHz, it's recommended to consult the datasheet for specific frequency-related characteristics and consider alternative optocoupler options designed for high-frequency use.
  • The choice of resistor values depends on the specific application and desired performance. As a general guideline, the input resistor (R1) should be chosen to limit the input current to the recommended maximum value (e.g., 50 mA). The output resistor (R2) should be selected based on the required output current and voltage. Consult the datasheet and application notes for more detailed guidance on resistor selection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N138-X009 Overview

Use the download button to access the 6N138-X009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N138, or try a keyword search, such as Optocoupler
