6N138M - onsemi

Description: VDE recognition (pending) – Ordering option V, e.g., 6N138VM ; Superior CTR-2000%; CTR guaranteed 0–70°C; Superior CMR-10kV/µs ; U.L. recognized (File # E90700, Vol. 2) ; Low current – 0.5mA ; Dual Channel – HCPL2730M, HCPL2731M (coming soon)

Download 6N138M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

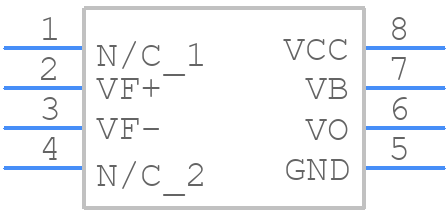

6N138M - onsemi - PCB symbol
click to zoom
PCB Footprints

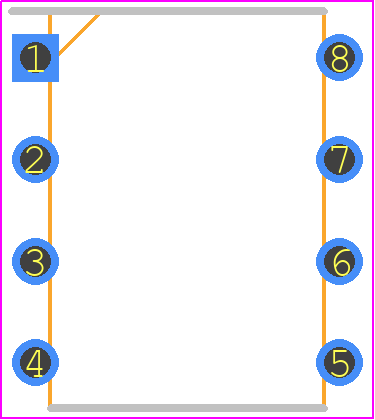

6N138M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MKT-NO8GREV7-2020
click to zoom
3D Models
6N138M - onsemi - 3D model - Dual-In-Line Packages - MKT-NO8GREV7-2020
click to zoom

6N138M Details

  • Manufacturer Part Number:

    6N138M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    300%

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00005 s

  • Response Time-Nom:

    0.0000073 ns

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

6N138M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N138M is -40°C to 100°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curves.
  • The maximum allowable voltage across the input pins of the 6N138M is 5V, with a maximum transient voltage of 10V for a duration of less than 10ms.
  • To protect the 6N138M from EOS, it is recommended to use a series resistor to limit the input current, and to ensure that the input voltage does not exceed the maximum rating.
  • The typical propagation delay time of the 6N138M is around 2-3μs, but this can vary depending on the specific application and operating conditions.
