6N138S-TA1 - Lite-On

Description: High Speed Optocouplers Darlington 100KBd Transistor Output

Download 6N138S-TA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

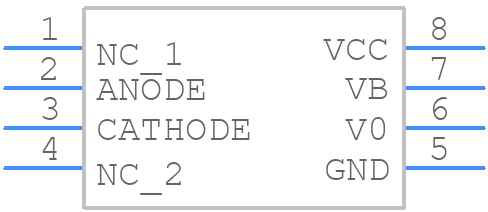

Symbol
6N138S-TA1 - Lite-On - PCB symbol
click to zoom
PCB Footprints
6N138S-TA1 - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - Lite-On
click to zoom

6N138S-TA1 Details

  • Manufacturer Part Number:

    6N138S-TA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GWDIP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

6N138S-TA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N138S-TA1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the 6N138S-TA1 is 80V, as specified in the datasheet.
  • The correct resistor value for the input LED of the 6N138S-TA1 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical propagation delay time for the 6N138S-TA1 is around 2-3 μs, as specified in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N138S-TA1 Overview

Use the download button to access the 6N138S-TA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N138, or try a keyword search, such as Optocoupler
