The recommended operating temperature range for the 6N138SM is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
To ensure proper biasing, make sure to provide a sufficient voltage supply to the LED (typically 1.2V to 1.5V) and a suitable current limiting resistor (typically 270Ω to 330Ω) to limit the LED current to 10mA to 20mA. Additionally, ensure the output transistor is properly biased with a suitable collector resistor and a stable voltage supply.
The 6N138SM has a maximum allowable isolation voltage of 5.0 kVrms between the input and output. This means that the device can withstand a maximum voltage difference of 5.0 kVrms between the LED and the phototransistor without compromising its electrical isolation.
To minimize EMI, ensure proper PCB layout and design, keeping the input and output circuits separate and using shielding or guard rings to prevent electromagnetic radiation. Additionally, use a low-pass filter or a ferrite bead on the input signal line to reduce high-frequency noise.
The 6N138SM has a typical propagation delay of 2μs to 5μs, which may not be suitable for very high-speed applications. However, it can be used in applications with moderate speed requirements, such as in power supplies, motor control, and industrial automation. For high-speed applications, consider using a faster optocoupler like the FODM8071 or the TLP2361.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N138SM Overview

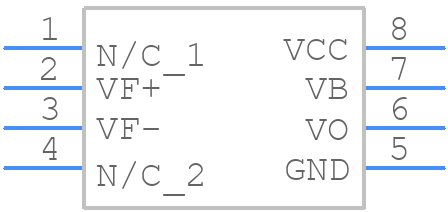

Use the download button to access the 6N138SM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N138,
or try a keyword search, such as Optocoupler
