A good PCB layout for the 6PADC3101TRGERQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the accuracy of the ADC conversion results, it's essential to follow proper PCB layout guidelines, use a stable and low-noise power supply, and ensure that the analog input signals are properly filtered and buffered. Additionally, calibration and offset correction can be performed to improve accuracy.
The recommended power-up sequence for the 6PADC3101TRGERQ1 is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and configured before starting conversions.
To handle overvoltage conditions on the analog inputs, it's recommended to use external voltage limiting circuits, such as voltage dividers or clamping diodes, to prevent damage to the ADC. Additionally, the 6PADC3101TRGERQ1 has built-in overvoltage protection, but it's still important to follow proper design practices to prevent overvoltage conditions.
The recommended clock frequency for the 6PADC3101TRGERQ1 is between 10 MHz and 50 MHz. However, the optimal clock frequency may vary depending on the specific application and requirements. It's recommended to consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6PADC3101TRGERQ1 Overview

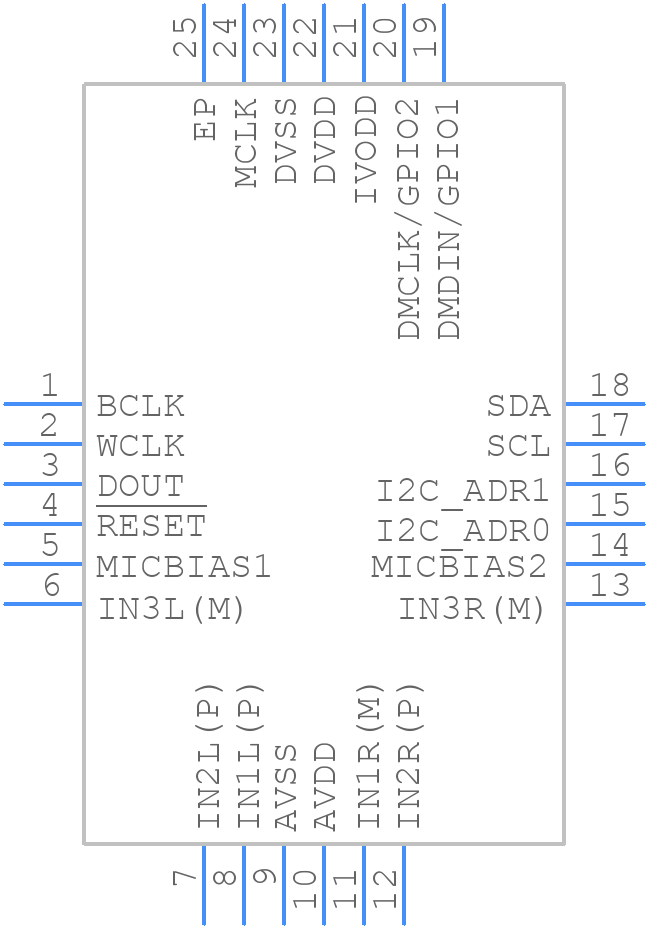

Use the download button to access the 6PADC3101TRGERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PADC,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
