71256L35DB footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

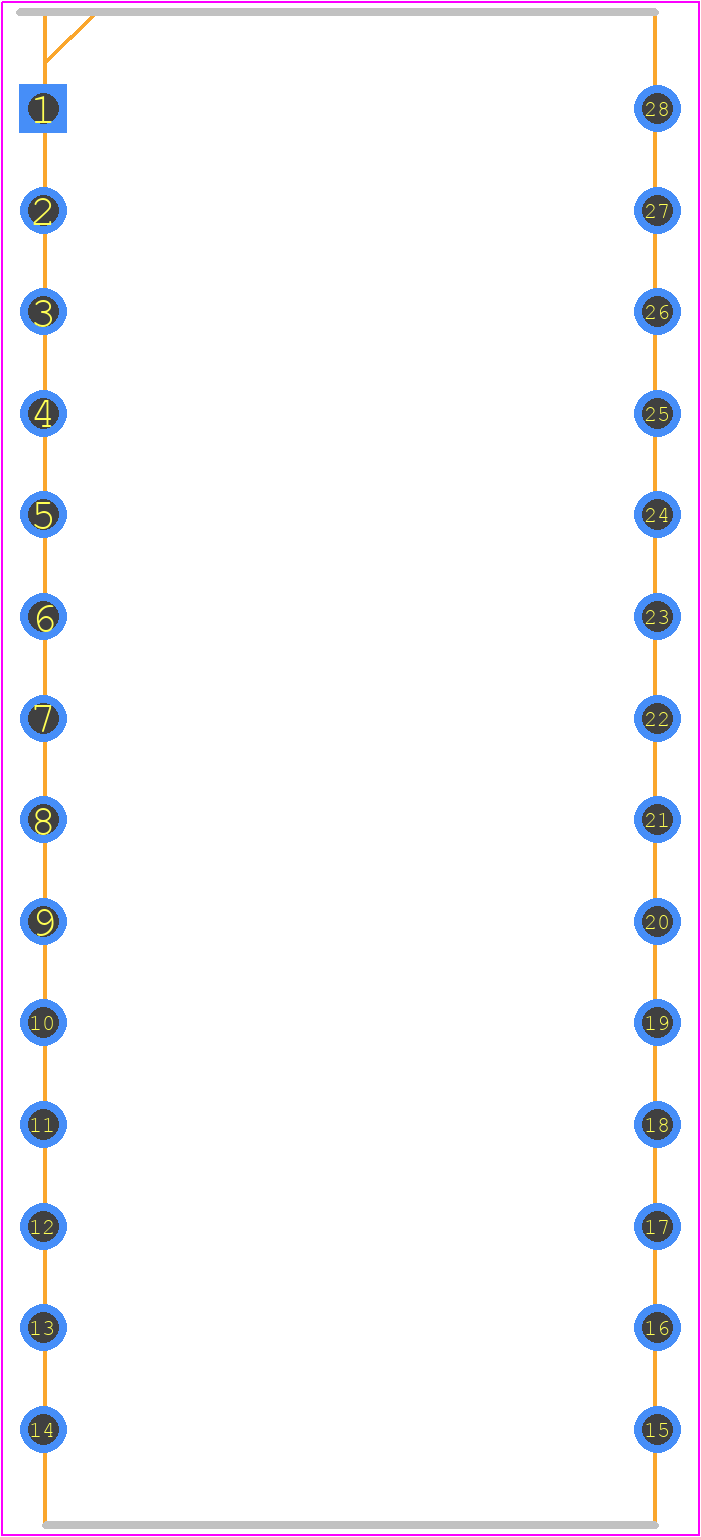

PCB Footprints

71256L35DB Details

A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the package.
Implement a robust power-on reset circuit, ensure a stable clock source, and consider using a thermistor or thermocouple to monitor temperature. Also, follow the recommended operating conditions and derating guidelines.
Use a combination of ceramic and electrolytic capacitors for decoupling, with a minimum of 10uF capacitance per power pin. Place decoupling capacitors as close to the power pins as possible, and use a star-configuration for bypassing.
Use a shielded enclosure, ensure proper grounding, and implement EMI filters on I/O lines. Follow the recommended PCB layout guidelines, and consider using a common-mode choke or ferrite beads for additional EMI suppression.
Use a high-quality clock source, ensure a stable clock frequency, and implement a clock buffer or repeater if necessary. Route clock signals as differential pairs, and avoid crossing clock signals over other signals or power planes.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 71256L35DB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 71256, or try a keyword search, such as SRAMs
