71256L55TDB - Renesas Electronics

Description: The 71256 5V CMOS SRAM is organized as 32K x 8. The circuit also offers a reduced power standby mode for significant system level power and cooling savings. The low-power (L) version also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation. Military grade product is available.

Download 71256L55TDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

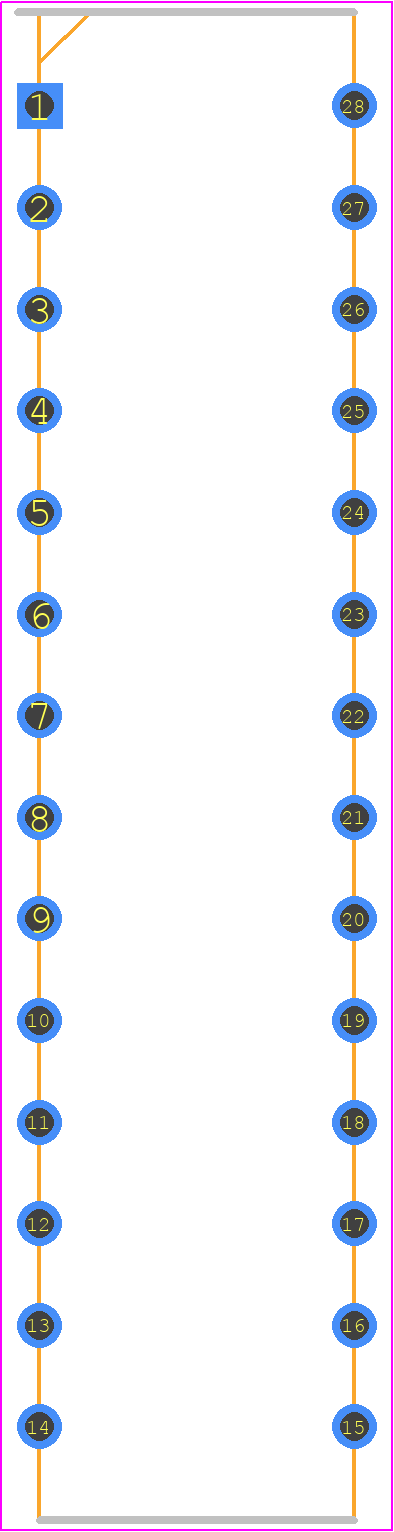

71256L55TDB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - SD28
click to zoom

71256L55TDB Details

  • Manufacturer Part Number:

    71256L55TDB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Pin Count:

    28

  • Manufacturer Package Code:

    SD28

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    55 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.1475 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    32KX8

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Standby Current-Max:

    0.0015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.115 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
