71256L85DB - Renesas Electronics

Description: The 71256 5V CMOS SRAM is organized as 32K x 8. The circuit also offers a reduced power standby mode for significant system level power and cooling savings. The low-power (L) version also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation. Military grade product is available.

Download 71256L85DB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

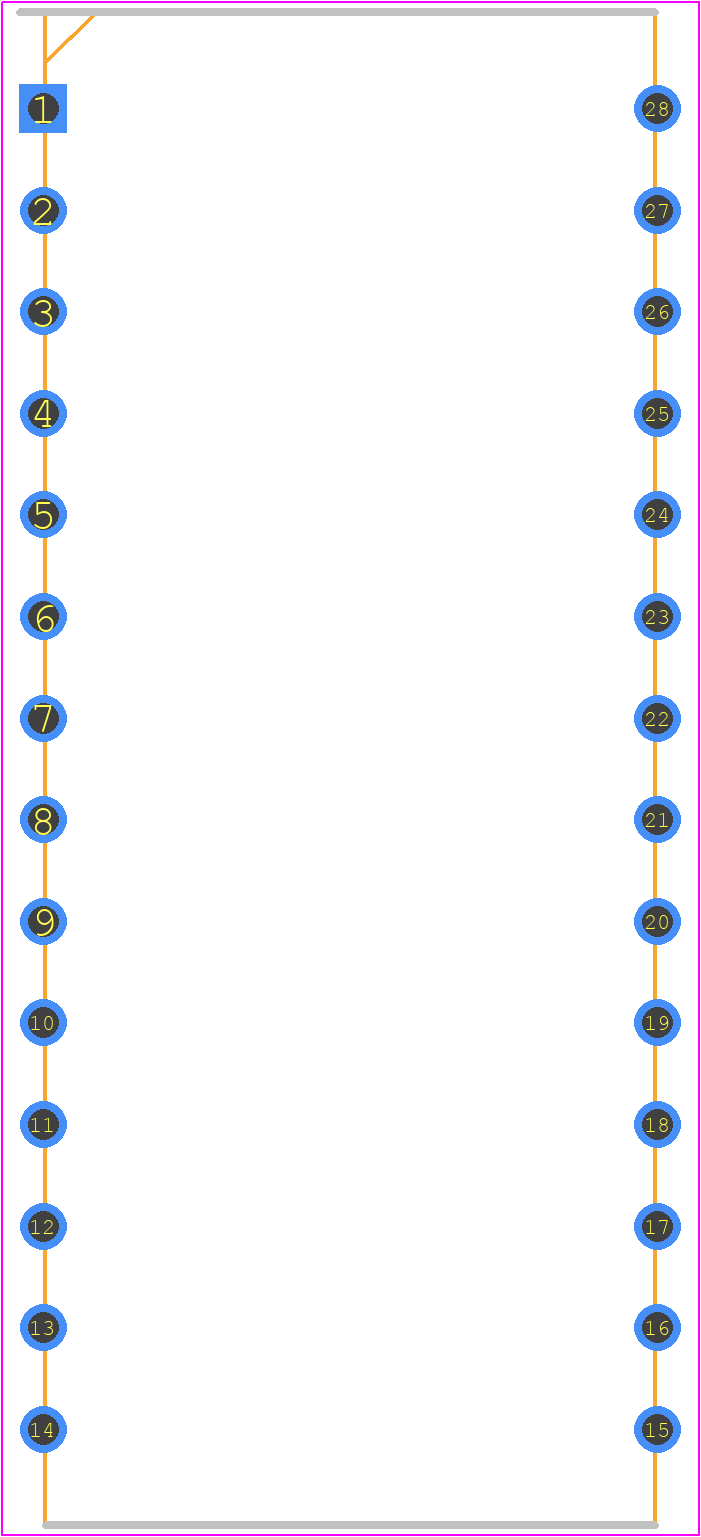

71256L85DB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CD28-
click to zoom

71256L85DB Details

  • Manufacturer Part Number:

    71256L85DB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Pin Count:

    28

  • Manufacturer Package Code:

    CD28

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    85 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.211 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    32KX8

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Standby Current-Max:

    0.0015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.115 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

71256L85DB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as using thermal vias, thermal pads, and heat sinks to ensure optimal heat dissipation.
  • Renesas recommends a specific power sequencing scheme in their datasheet, which involves powering up the VCC core voltage before the VCCIO I/O voltage. Additionally, it's essential to ensure that the power supplies are stable and within the recommended voltage ranges before enabling the device.
  • To minimize EMI and RFI, Renesas recommends using a multi-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using shielded cables for sensitive signals. Additionally, it's essential to follow good PCB design practices, such as minimizing signal loop areas and using EMI filters if necessary.
  • Renesas provides a troubleshooting guide in their datasheet, which includes steps to identify and resolve common issues, such as checking the power supply, clock signals, and reset pins. Additionally, using debug tools, such as logic analyzers or oscilloscopes, can help identify the root cause of the issue.
  • Renesas recommends using thermal simulation tools to analyze the device's thermal performance in high-temperature environments. Additionally, it's essential to ensure good airflow, use heat sinks or thermal interfaces, and follow the recommended PCB layout guidelines to minimize thermal resistance.
