71256SA15TPGI - Renesas Electronics

Description: The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71256SA15TPGI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 71256SA15TPGI model

Email notifications will be applied after download.

Send part feedback

Symbol

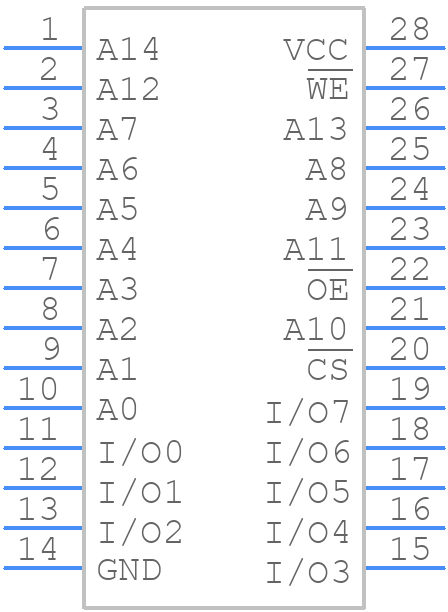

71256SA15TPGI - Renesas Electronics - PCB symbol

PCB Footprints

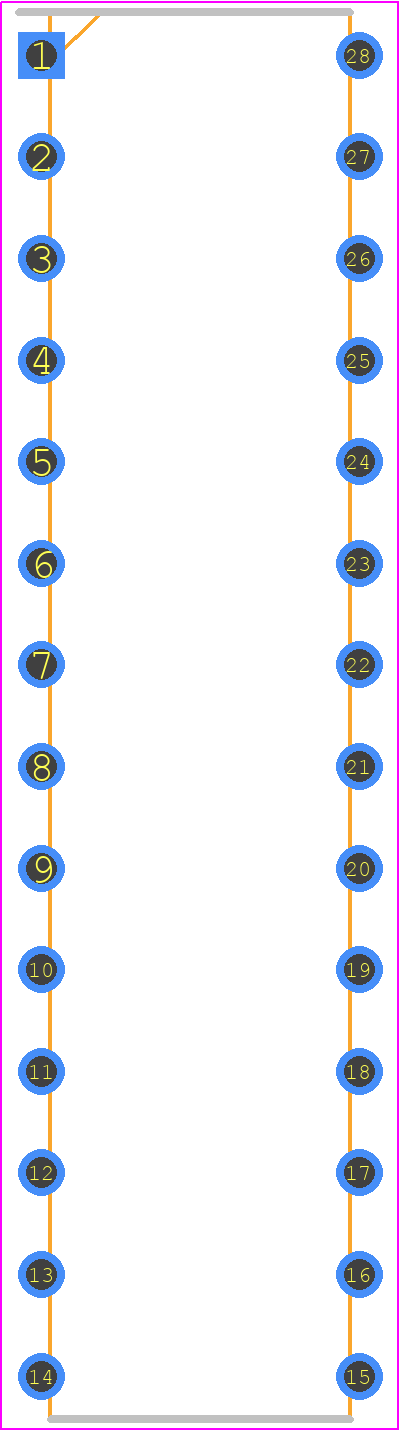

71256SA15TPGI - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PTG28

3D Models

71256SA15TPGI - Renesas Electronics - 3D model - Dual-In-Line Packages - PTG28

Datasheet Download Datasheet
Stock & Prices Price & Stock for 71256SA15TPGI
Part Number 71256SA15TPGI
Manufacturer Renesas Electronics
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PTG28
Released Date Feb 15, 2020
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

71256SA15TPGI Details

Manufacturer Part Number:
71256SA15TPGI
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

71256SA15TPGI Overview

Use the download button to access the 71256SA15TPGI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 71256, or try a keyword search, such as SRAMs
