7164S70DB - Renesas Electronics

Description: The 7164 5V CMOS SRAM is organized as 8K x 8. The 7164 offers a reduced power standby mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs of the IDT7164 are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 7164S70DB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

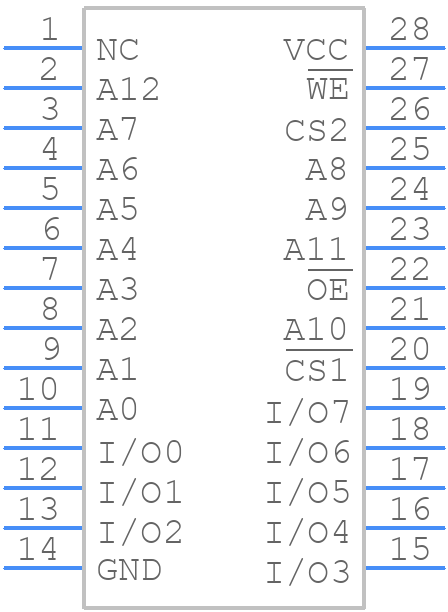

7164S70DB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

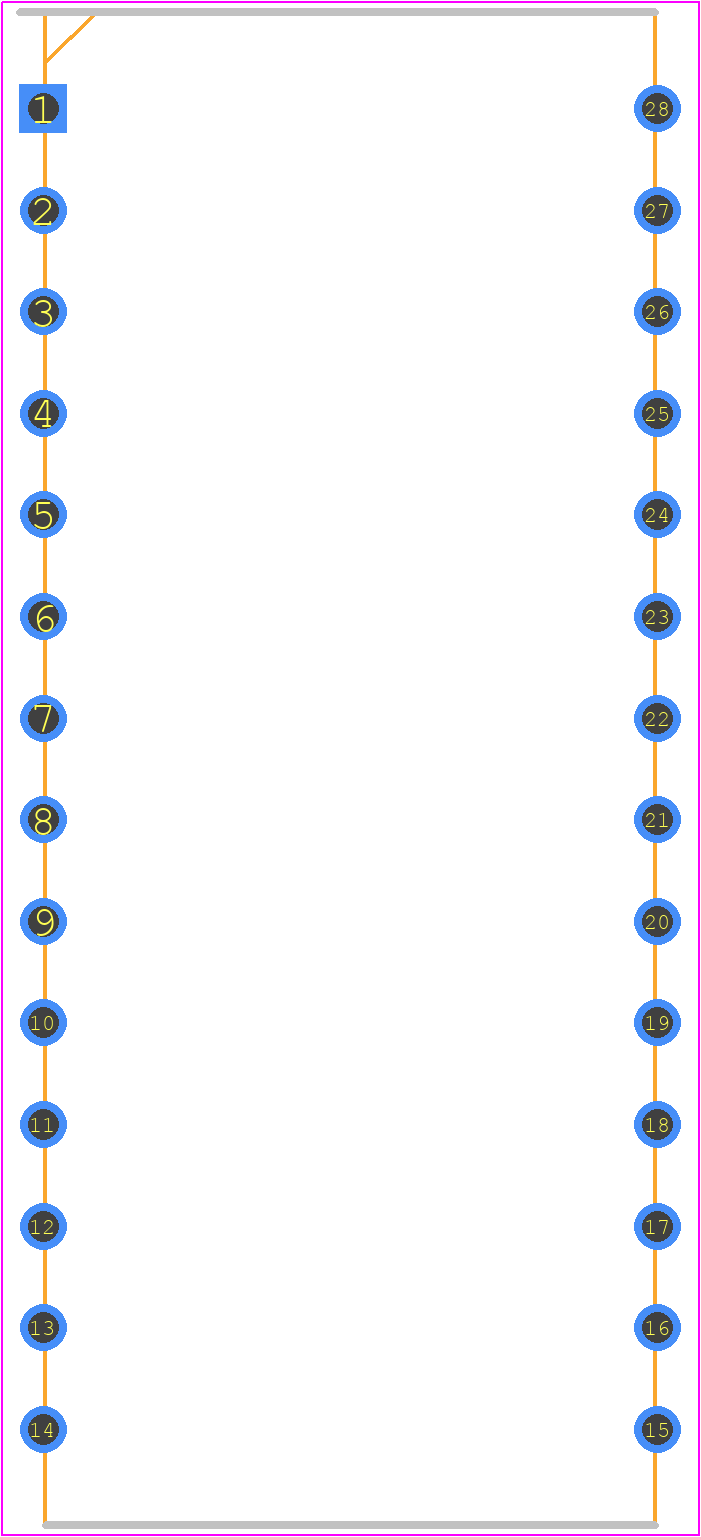

7164S70DB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CD28-
click to zoom

7164S70DB Details

  • Manufacturer Part Number:

    7164S70DB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CD28

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    70 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Memory Density:

    65536 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    8KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

7164S70DB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's application notes or by contacting Renesas' technical support team.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the device's power pins. The specific capacitor values and placement can be found in the device's application notes or by consulting with Renesas' technical support team.
  • Renesas provides troubleshooting guidelines for I2C interface issues in their application notes and technical documentation. Common issues include incorrect pull-up resistor values, bus contention, and clock stretching. Renesas' technical support team can also provide assistance with troubleshooting.
  • Renesas provides thermal design guidelines and recommendations for high-temperature environments in their application notes and technical documentation. This includes information on thermal resistance, junction temperature, and heat sink design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7164S70DB Overview

Use the download button to access the 7164S70DB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7164S, or try a keyword search, such as SRAMs
