71V65603S150BQGI8 - Renesas Electronics

Description: The 71V65603 3.3V CMOS SRAM is organized as 256K X 36. It is designed to eliminate dead bus cycles when turning the bus around between reads and writes, or writes and reads. Thus, it has been given the name ZBTTM, or Zero Bus Turnaround. The 71V65603 contain data I/O, address and control signal registers. In the burst mode, it can provide four cycles of data for a single address presented to the SRAM.

Download 71V65603S150BQGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

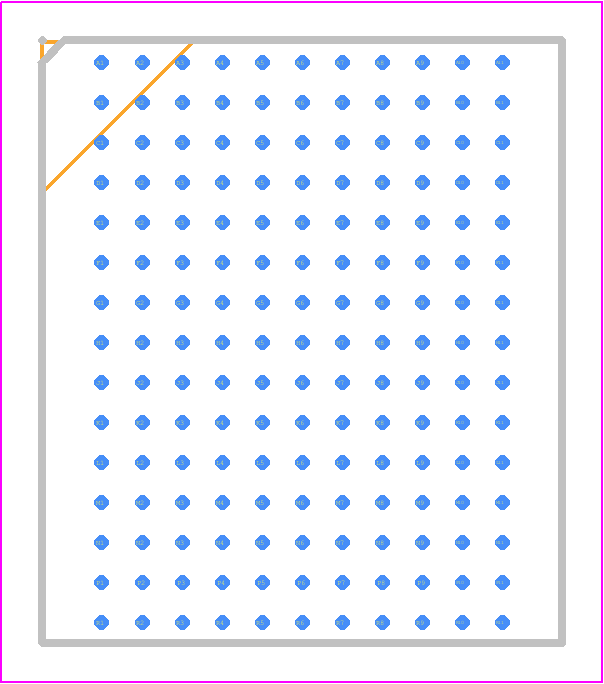

71V65603S150BQGI8 - Renesas Electronics PCB footprint - BGA - BGA - 165 Fine Pitch Ball Grid Array (fBGA) Package Diagram Outline
click to zoom
3D Models
71V65603S150BQGI8 - Renesas Electronics  - 3D model - BGA - 165 Fine Pitch Ball Grid Array (fBGA) Package Diagram Outline
click to zoom

71V65603S150BQGI8 Details

  • Manufacturer Part Number:

    71V65603S150BQGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    165

  • Manufacturer Package Code:

    BQG165

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    3.8 ns

  • Additional Feature:

    PIPELINED ARCHITECTURE

  • Clock Frequency-Max (fCLK):

    150 MHz

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PBGA-B165

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Memory Density:

    9437184 bit

  • Memory IC Type:

    ZBT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    165

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA165,11X15,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.06 A

  • Standby Voltage-Min:

    3.14 V

  • Supply Current-Max:

    0.345 mA

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm
