71V65803S150BQG8 - Renesas Electronics

Description: The 71V65803 3.3V CMOS SRAM organized as 512K X 18. It is designed to eliminate dead bus cycles when turning the bus around between reads and writes, or writes and reads. Thus, it has been given the name ZBTTM, or Zero Bus Turnaround. The 71V65803 contains data I/O, address and control signal registers. In the burst mode, it can provide four cycles of data for a single address presented to the SRAM.

Download 71V65803S150BQG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

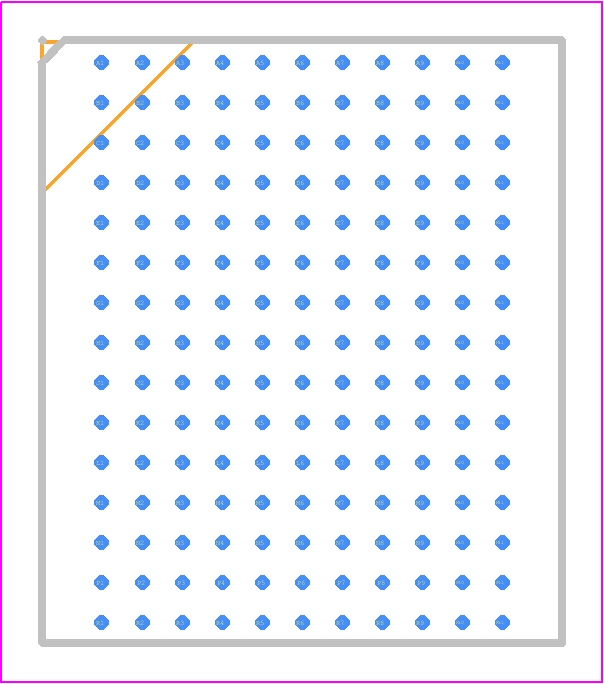

71V65803S150BQG8 - Renesas Electronics PCB footprint - BGA - BGA - BGA_165
click to zoom
3D Models
71V65803S150BQG8 - Renesas Electronics  - 3D model - BGA - BGA_165
click to zoom

71V65803S150BQG8 Details

  • Manufacturer Part Number:

    71V65803S150BQG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    165

  • Manufacturer Package Code:

    BQG165

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    3.8 ns

  • Additional Feature:

    PIPELINED ARCHITECTURE

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PBGA-B165

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Memory Density:

    9437184 bit

  • Memory IC Type:

    ZBT SRAM

  • Memory Width:

    18

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    165

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    512KX18

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA165,11X15,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.04 A

  • Standby Voltage-Min:

    3.14 V

  • Supply Current-Max:

    0.325 mA

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

71V65803S150BQG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (Renesas Document No. AP-5053) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • A reliable POR circuit can be implemented using an external voltage supervisor IC (such as the Renesas ISL88003) that monitors the power supply voltage and asserts a reset signal to the 71V65803S150BQG8 during power-up and power-down sequences.
  • The 71V65803S150BQG8 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and optimizing PCB layout to minimize thermal resistance.
  • Renesas provides a troubleshooting guide (Renesas Document No. AP-5054) that covers common issues, diagnostic techniques, and repair procedures for the 71V65803S150BQG8. Additionally, using a logic analyzer or oscilloscope can help identify signal integrity issues or timing problems.
  • Yes, the 71V65803S150BQG8 is a high-speed device that requires careful attention to EMI/EMC design considerations, such as using shielded cables, minimizing signal loop areas, and implementing proper grounding and decoupling techniques to reduce electromagnetic radiation and susceptibility.
