7201LA15JGI - Renesas Electronics

Description: The 7201 is a 512 x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Download 7201LA15JGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7201LA15JGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

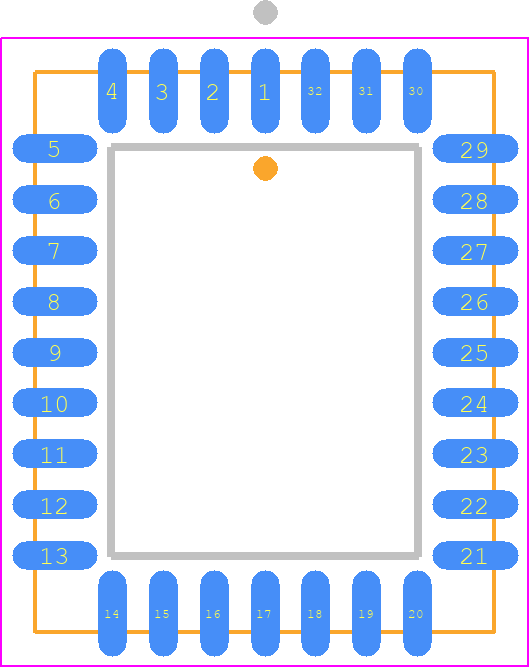

7201LA15JGI - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLCC32_
click to zoom

7201LA15JGI Details

  • Manufacturer Part Number:

    7201LA15JGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PLCC

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    15 ns

  • Additional Feature:

    RETRANSMIT

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Cycle Time:

    25 ns

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.97 mm

  • Memory Density:

    4608 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.55 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.43 mm

7201LA15JGI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended for optimal thermal performance. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure the device is operated within the recommended temperature range and consider using thermal sensors for monitoring.
  • Use a minimum of 2x 10uF ceramic capacitors (X5R or X7R dielectric) placed as close as possible to the device's power pins. Add additional capacitors (1uF to 10uF) depending on the specific application's power requirements.
  • Use a logic analyzer or oscilloscope to monitor signal integrity and timing. Check for proper power sequencing, clock signal quality, and signal routing. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Operating at the maximum junction temperature (Tj) can reduce the device's lifespan and reliability. Ensure proper thermal management and consider derating the device's operating frequency or voltage to reduce heat generation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7201LA15JGI Overview

Use the download button to access the 7201LA15JGI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7201L, or try a keyword search, such as FIFOs
