Description:The 7202 is a 1K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN1796) and thermal design guides. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
Renesas provides a Secure Boot and Firmware Encryption Guide (e.g., R01AN4461) that outlines the steps to implement secure boot and firmware encryption on the 7202LA12SOG8. This includes using the built-in cryptographic accelerators and following specific programming and configuration guidelines.
The internal oscillator on the 7202LA12SOG8 has a typical accuracy of ±1.5% at room temperature. To improve accuracy, you can use an external crystal oscillator or ceramic resonator, or implement a calibration routine using the MCU's built-in calibration features.
To optimize power consumption, use the MCU's low-power modes (e.g., Sleep, Stop, and Hibernate), reduce clock frequencies, and disable unused peripherals. Additionally, use the Renesas Power Consumption Estimator tool to simulate and optimize power consumption in your design.
Renesas provides a range of debugging tools, including the E2 Emulator and the CS+ integrated development environment. Use these tools to debug and troubleshoot your design, and follow best practices such as using breakpoints, watching variables, and analyzing trace data.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7202LA12SOG8 Overview

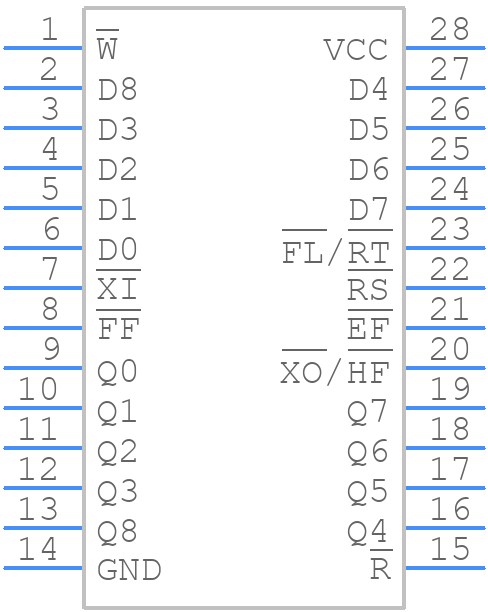

Use the download button to access the 7202LA12SOG8 schematic symbol, PCB footprint, and 3D model.
