7203L30TDB - Renesas Electronics

7203L30TDB Details

• Manufacturer Part Number:

  7203L30TDB

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  CDIP

• Package Description:

  CERAMIC, DIP-28

• Pin Count:

  28

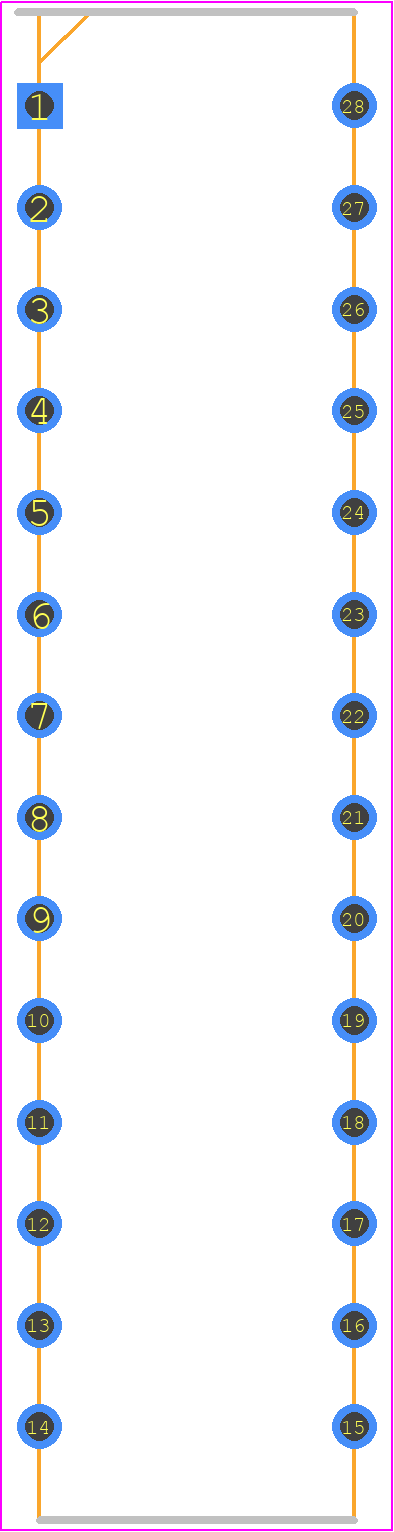

• Manufacturer Package Code:

  SD28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  30 ns

• Additional Feature:

  RETRANSMIT

• Clock Frequency-Max (fCLK):

  25 MHz

• Cycle Time:

  40 ns

• JESD-30 Code:

  R-CDIP-T28

• JESD-609 Code:

  e0

• Length:

  37.1475 mm

• Memory Density:

  18432 bit

• Memory IC Type:

  BI-DIRECTIONAL FIFO

• Memory Width:

  9

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  2KX9

• Output Enable:

  NO

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883 Class B

• Seated Height-Max:

  5.08 mm

• Standby Current-Max:

  0.004 A

• Supply Current-Max:

  0.15 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
