Description:The 7204 is a 4K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The power-up sequence is critical for the 7204L30DB. Renesas recommends powering up the VCC pin first, followed by the VDD pin, and then the input signals. A specific power-up sequence is provided in the datasheet and application notes.
To reduce EMI and noise, Renesas recommends using a multi-layer PCB, placing decoupling capacitors close to the device, and using a common mode choke or ferrite bead on the power lines. Additionally, shielding and grounding techniques can be employed to minimize radiation.
Renesas recommends using a voltage supervisor or a dedicated overvoltage protection (OVP) circuit to prevent damage from voltage spikes or surges. The OVP circuit should be designed to trigger at a voltage slightly above the maximum recommended operating voltage.
In high-temperature environments, thermal design is critical. Renesas recommends using a heat sink or thermal pad, and ensuring good airflow around the device. The thermal resistance of the PCB and surrounding components should also be considered to prevent thermal runaway.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7204L30DB Overview

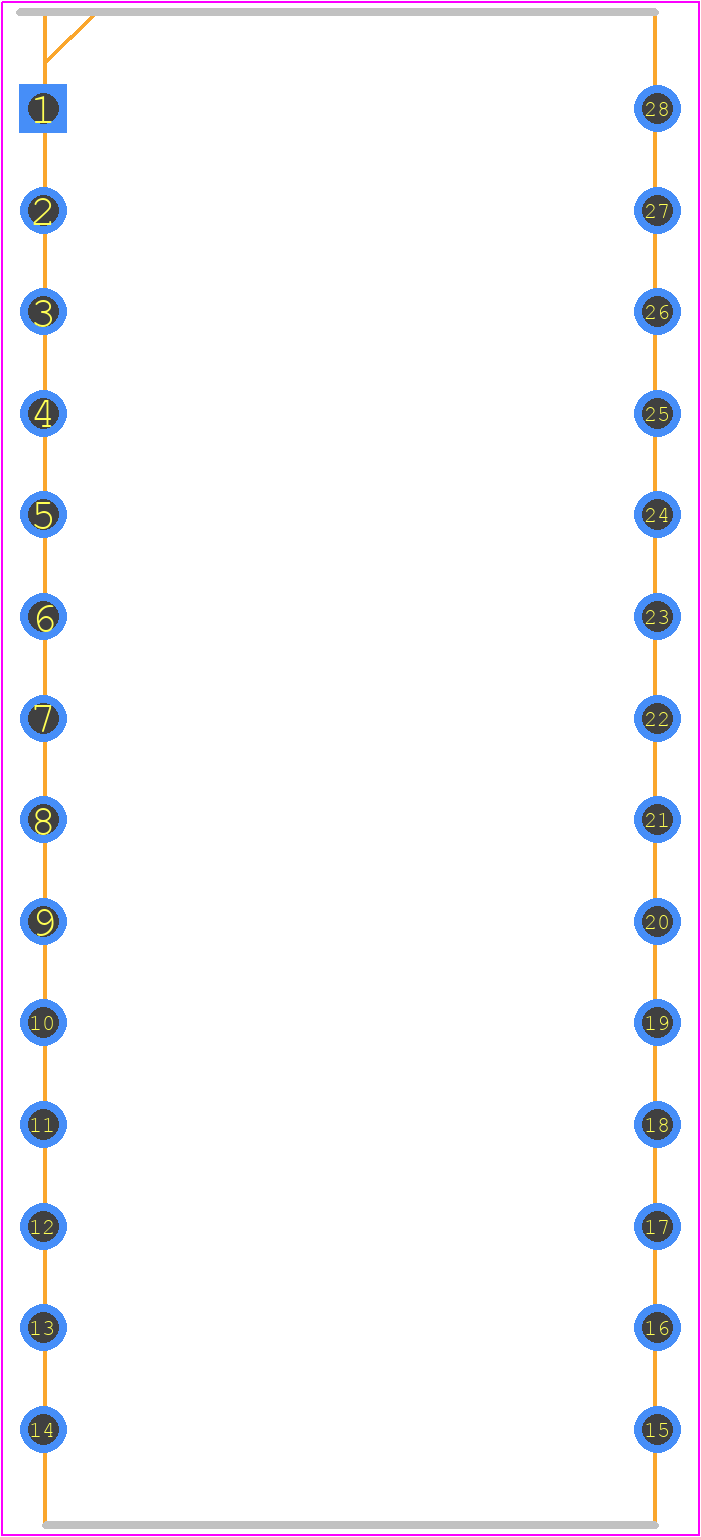

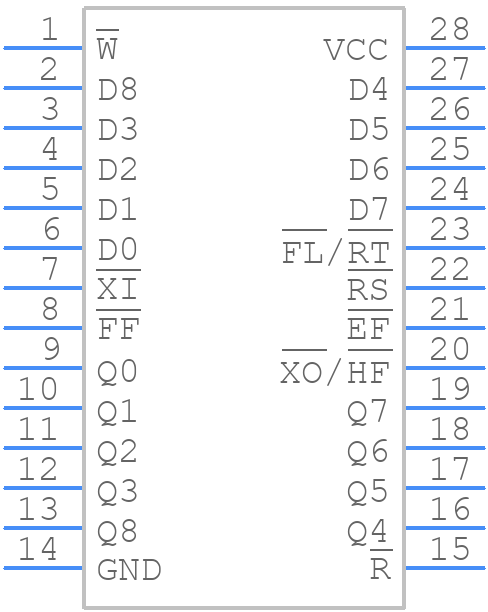

Use the download button to access the 7204L30DB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7204L,
or try a keyword search, such as FIFOs
