Description:The 7205 is a 8K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Additionally, consult Renesas' thermal design guidelines and application notes for specific recommendations.
The datasheet provides general guidelines for input and output capacitors, but Renesas recommends using capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that meets the specified ripple current and ESR requirements. Consult Renesas' application notes for more detailed guidance.
Renesas provides troubleshooting guides and application notes that cover common issues like overvoltage protection and undervoltage lockout. These resources provide step-by-step procedures for identifying and resolving these issues. Additionally, consult the datasheet and contact Renesas' technical support for further assistance.
Renesas provides soldering and assembly guidelines in their packaging and assembly documents, which include recommendations for soldering temperatures, times, and techniques, as well as handling and storage guidelines to prevent damage during assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7205L20TDB Overview

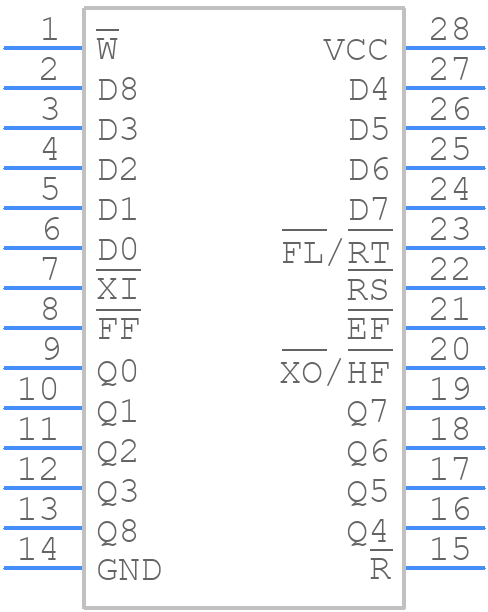

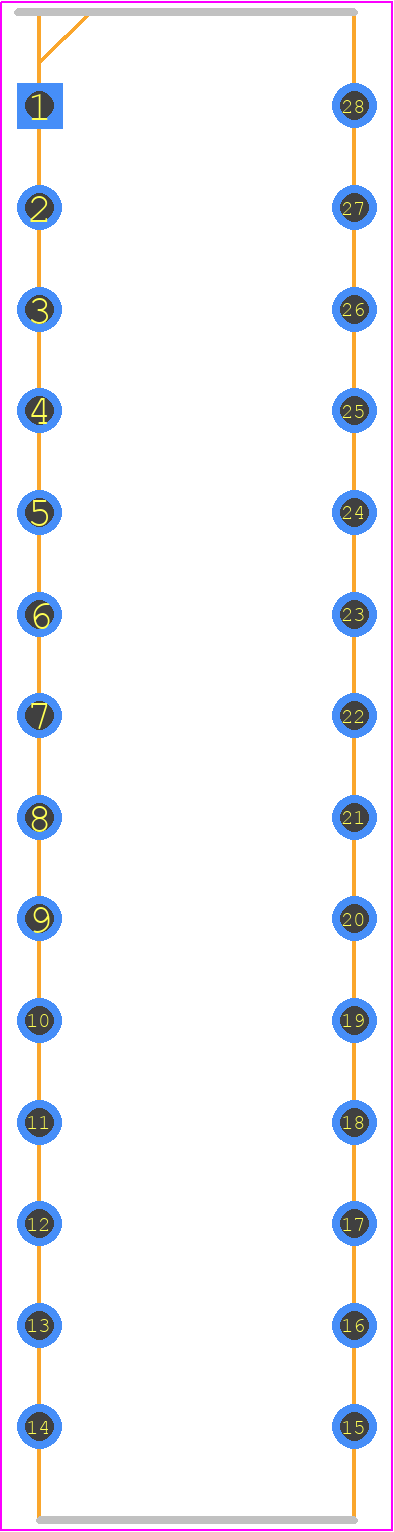

Use the download button to access the 7205L20TDB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7205L,
or try a keyword search, such as FIFOs
