7207L15JG - Renesas Electronics

Description: The 7207 is a 32K x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Download 7207L15JG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7207L15JG - Renesas Electronics - PCB symbol
click to zoom

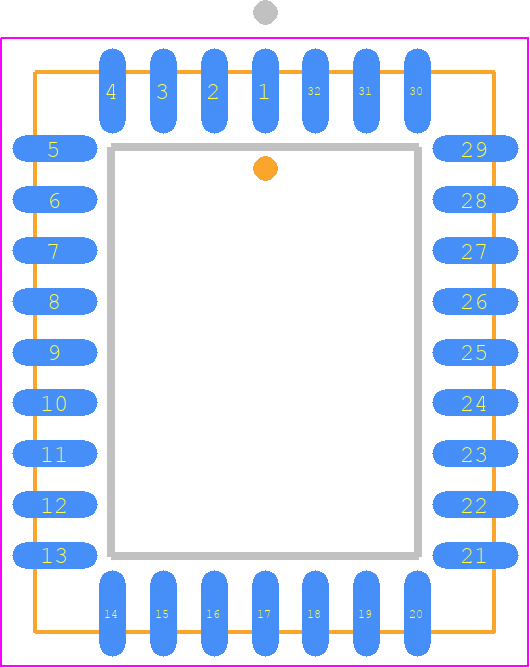

PCB Footprints
7207L15JG - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLG32-ren1
click to zoom

7207L15JG Details

  • Manufacturer Part Number:

    7207L15JG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PLCC

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLG32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    15 ns

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Cycle Time:

    25 ns

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.9954 mm

  • Memory Density:

    294912 bit

  • Memory IC Type:

    BI-DIRECTIONAL FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.556 mm

  • Standby Current-Max:

    0.012 A

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.4554 mm

7207L15JG Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the 7207L15JG is 12 MHz to 24 MHz, with a typical value of 16 MHz.
  • To configure the 7207L15JG for low-power operation, set the clock mode to low-power mode (LPM) and adjust the clock frequency to a lower value. Additionally, disable unnecessary peripherals and use the power-down mode (PD) or stop mode (STP) when the device is not in use.
  • The maximum operating temperature range for the 7207L15JG is -40°C to +85°C, with a storage temperature range of -40°C to +125°C.
  • The 7207L15JG has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control register. The WDT can be set to timeout after a specified period, and the device will reset if the WDT is not cleared before the timeout period expires.
  • The maximum current consumption of the 7207L15JG varies depending on the operating mode and clock frequency. In active mode, the maximum current consumption is approximately 10 mA at 16 MHz, while in sleep mode, it is around 10 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7207L15JG Overview

Use the download button to access the 7207L15JG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7207L, or try a keyword search, such as FIFOs
