72125L25SOG footprint, schematic symbol and 3D model by Renesas Electronics

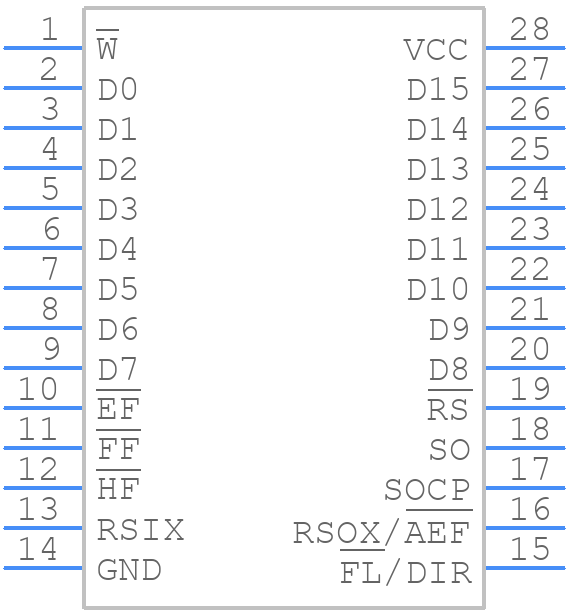

Symbol

PCB Footprints

3D Models

72125L25SOG Details

Renesas provides a recommended PCB layout guide in their application note (R01AN3801EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 72125L25SOG also has an internal overcurrent detection feature, but it's limited to a specific threshold and may not be sufficient for all applications.
According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V. Exceeding this voltage may cause damage to the device.
Renesas provides EMC design guidelines in their application note (R01AN3801EJ0100) which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure EMC compliance.
The recommended operating temperature range for the 72125L25SOG is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to follow the thermal design guidelines to ensure reliable operation within the specified temperature range.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 72125L25SOG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 72125, or try a keyword search, such as FIFOs

Showing 0 results

Image	Part Number	Model
	IDT72125L25SOG8 Integrated Device Technology Inc FIFO, 1KX16, 25ns, Synchronous, CMOS, PDSO28
	72125L25SO Integrated Device Technology Inc FIFO, 1KX16, 25ns, Synchronous, CMOS, PDSO28
	IDT72125L25SOG Renesas Electronics Corporation FIFO, 1KX16, 25ns, Synchronous, CMOS, PDSO28
	IDT72125L25SOG8 Renesas Electronics Corporation FIFO, 1KX16, 25ns, Synchronous, CMOS, PDSO28
	IDT72125L25SO8 Integrated Device Technology Inc FIFO, 1KX16, 25ns, Synchronous, CMOS, PDSO28
For a full list of alternate parts for 72125L25SOG, check out Findchips.com
