72251L15PFGI - Renesas Electronics

Description: The 72251SyncFIFO™ is a 8K x 9 First-In, First-Out memory with clocked read and write controls. This FIFO is useful for a wide variety of data buffering needs such as graphics, local area networks and interprocessor communication. These FIFOs have 9-bit input and output ports. The Read Clock can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dual-clock operation.

Download 72251L15PFGI Model

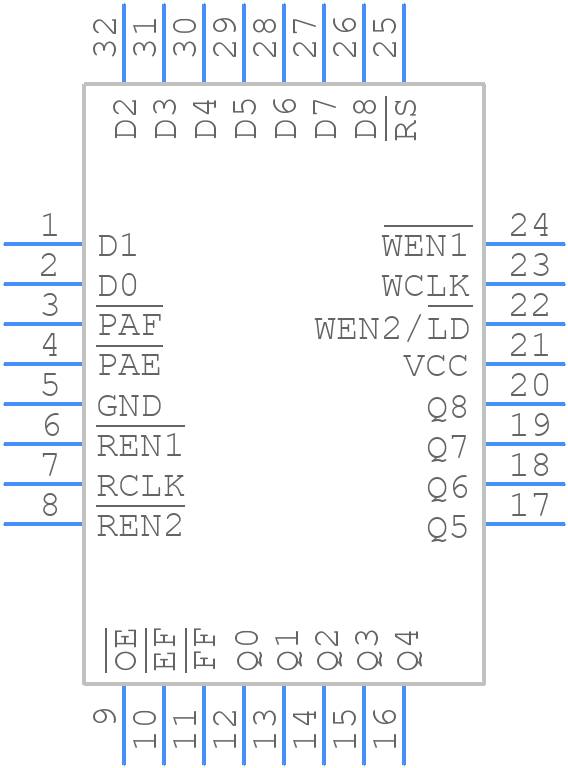

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
72251L15PFGI - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRG32-
click to zoom
3D Models
72251L15PFGI - Renesas Electronics  - 3D model - Quad Flat Packages - PRG32-
click to zoom

72251L15PFGI Details

  • Manufacturer Part Number:

    72251L15PFGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRG32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    10 ns

  • Cycle Time:

    15 ns

  • JESD-30 Code:

    R-PQFP-G32

  • JESD-609 Code:

    e3

  • Memory Density:

    73728 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8KX9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

72251L15PFGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) for thermal management. It suggests using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a heat sink with a thermal interface material.
  • Renesas recommends following the guidelines in their reliability handbook (Renesas Reliability Handbook, Rev. 2.00) for high-temperature operation. This includes derating the device, using a heat sink, and ensuring proper thermal management. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
  • Renesas recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) for CIN, with a value between 4.7 μF to 10 μF. For COUT, use a low-ESR ceramic or electrolytic capacitor with a value between 10 μF to 22 μF. The capacitor selection should be based on the specific application requirements and PCB layout.
  • To troubleshoot PG signal issues, check the voltage regulator's output voltage, ensure the input voltage is within the recommended range, and verify the PG pin is properly connected to the desired monitoring circuitry. Also, review the PG signal timing diagram in the datasheet to ensure correct implementation.
  • If the EN pin is not used, the device will always be enabled, which may lead to increased power consumption and heat generation. It is recommended to use the EN pin to control the device's power state, especially in battery-powered or low-power applications.
