723642L15PFG - Renesas Electronics

723642L15PFG Details

• Manufacturer Part Number:

  723642L15PFG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TQFP

• Pin Count:

  120

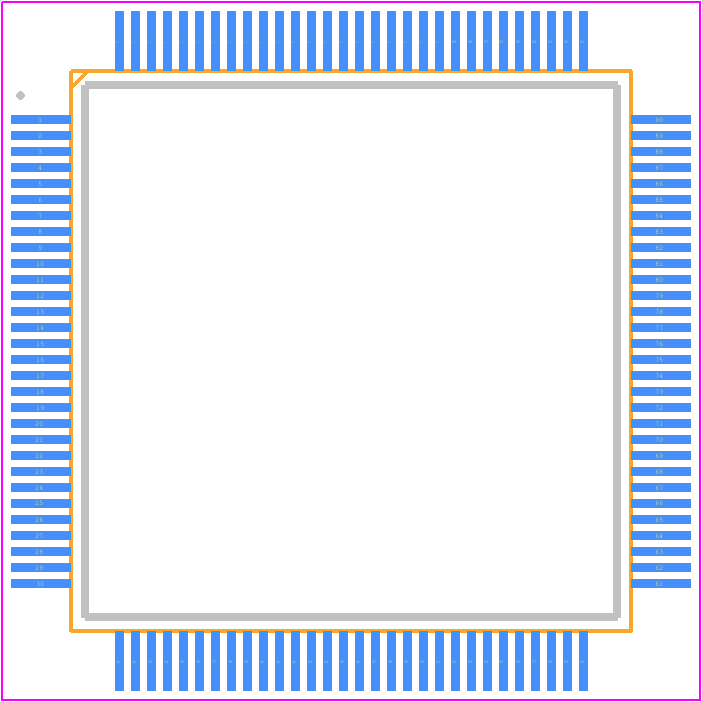

• Manufacturer Package Code:

  PNG120

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  10 ns

• Additional Feature:

  MAILBOX

• Clock Frequency-Max (fCLK):

  66.7 MHz

• Cycle Time:

  15 ns

• JESD-30 Code:

  S-PQFP-G120

• JESD-609 Code:

  e3

• Length:

  14 mm

• Memory Density:

  36864 bit

• Memory IC Type:

  BI-DIRECTIONAL FIFO

• Memory Width:

  36

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  120

• Number of Words:

  1024 words

• Number of Words Code:

  1000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  1KX36

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP120,.63SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Standby Current-Max:

  0.001 A

• Supply Current-Max:

  0.4 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
