Description:The 72V01 is a 512 x 9 dual-port FIFO that operates at Vcc between 3.0V and 3.6V. The device will load and empty data on a first-in/first-out basis. It uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The power-up sequence is critical for the 72V01L25JGI. Renesas recommends a specific power-up sequence in their datasheet, which involves powering up the VCC and VDD pins simultaneously, followed by the input signals. Failure to follow this sequence may result in incorrect operation or damage to the device.
Operating the 72V01L25JGI beyond the recommended operating temperature range (typically -40°C to 125°C) can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range to maintain its performance and longevity.
Renesas provides a troubleshooting guide in their application notes and technical documentation. Engineers can also use tools like logic analyzers and oscilloscopes to debug the issue. Additionally, Renesas offers technical support and FAQs on their website to help resolve common issues.
The 72V01L25JGI is a sensitive device that requires proper ESD protection and handling. Renesas recommends following standard ESD handling procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, the device should be handled in a controlled environment with minimal humidity and temperature fluctuations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
72V01L25JGI Overview

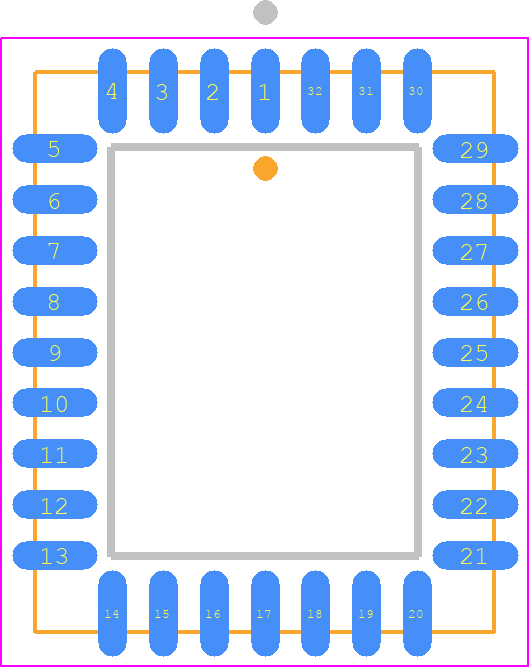

Use the download button to access the 72V01L25JGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 72V01,
or try a keyword search, such as FIFOs
