72V245L15TFGI - Renesas Electronics

Description: The 72V245 is a 4K x 18 first-in, first-out memory with clocked read and write controls. It is a 3.3V version of the 72245 FIFO and is applicable for a wide variety of data buffering needs, such as optical disk controllers, Local Area Networks (LANs), and interprocessor communication. It has 18-bit input and output ports. The Read Clock(RCLK) can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dual-clock operation.

Download 72V245L15TFGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
72V245L15TFGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

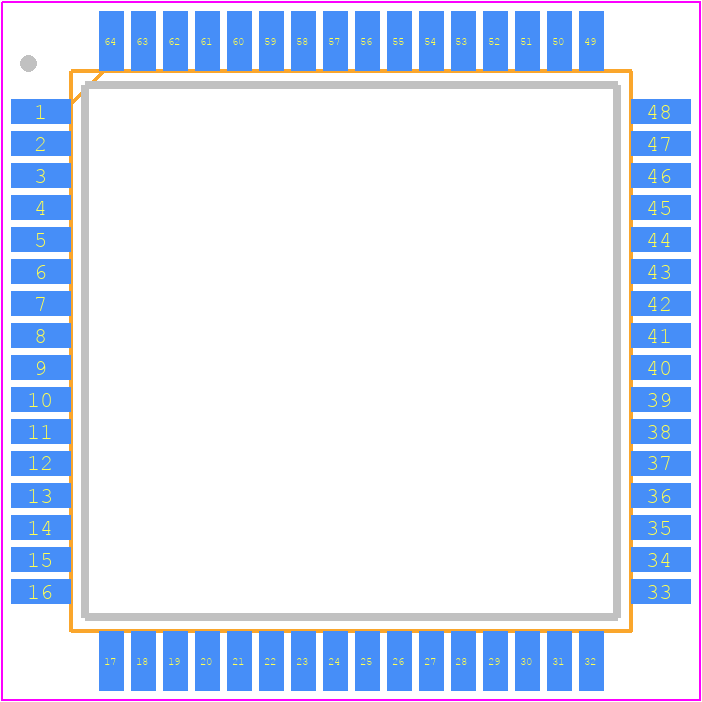

72V245L15TFGI - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PNG64-0
click to zoom
3D Models
72V245L15TFGI - Renesas Electronics - 3D model - Quad Flat Packages - PNG64-0
click to zoom

72V245L15TFGI Details

  • Manufacturer Part Number:

    72V245L15TFGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PPG64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    10 ns

  • Clock Frequency-Max (fCLK):

    100 MHz

  • Cycle Time:

    15 ns

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Memory Density:

    73728 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    18

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4KX18

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

72V245L15TFGI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Monitor the device's junction temperature and adjust the system design accordingly.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. A 10uF capacitor is recommended for the input, and a 1uF capacitor is recommended for the output.
  • Use a shielded enclosure, keep the PCB layout compact, and minimize loop areas. Implement a common-mode choke and a ferrite bead in the input and output lines to reduce EMI.
  • Apply the input voltage first, followed by the enable signal. Ensure that the input voltage is stable before applying the enable signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

72V245L15TFGI Overview

Use the download button to access the 72V245L15TFGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 72V24, or try a keyword search, such as FIFOs
