Description:The 72V251 is an 8K x 9 First-In, First-Out memory with clocked read and write controls. It is a 3.3V version of the 72251 device and is applicable for a wide variety of data buffering needs such as graphics, local area networks and interprocessor communication. It has 9-bit input and output ports. The Read Clock can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dualclock operation.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes recommendations for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or fans to maintain a safe operating temperature.
The recommended power-up and power-down sequences can be found in the datasheet or in Renesas' application notes. Generally, it's recommended to power up the device in a specific sequence, such as powering up the core voltage before the I/O voltage, and to power down the device in the reverse sequence.
Renesas provides a troubleshooting guide in their application notes or technical support documents. Common troubleshooting steps include checking the power supply, clock signals, and reset signals, as well as using debug tools such as oscilloscopes or logic analyzers to identify the root cause of the issue.
Yes, Renesas provides guidelines for EMI/EMC design considerations in their application notes or technical support documents. These guidelines include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
72V251L15PFGI8 Overview

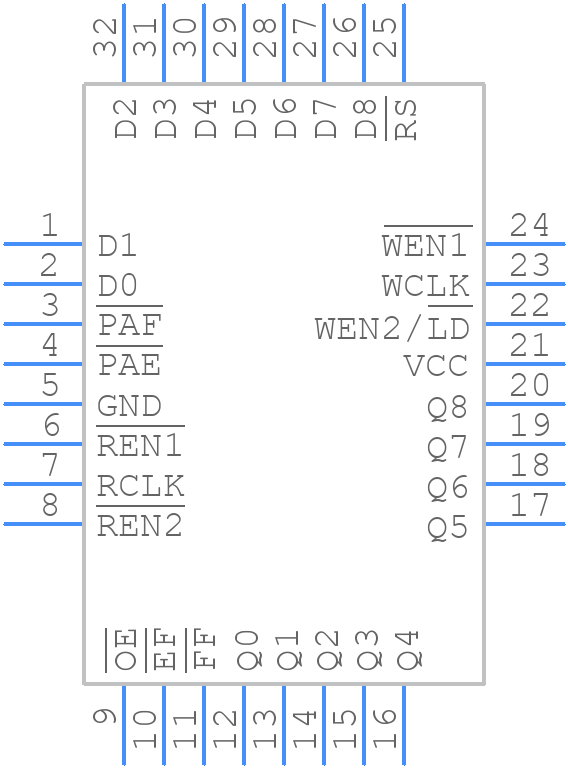

Use the download button to access the 72V251L15PFGI8 schematic symbol, PCB footprint, and 3D model.
