72V36110L7-5PFGI - Renesas Electronics

Description: The 72V36110 128K x 36 SuperSync II FIFO memory with clocked read and write controls offers flexible Bus-Matching x36/x18/x9 data flow and Asynchronous/Synchronous translation on the read or write ports ; SuperSync II FIFO's are appropriate for network, video, telecommunications, data communications and other applications that need to buffer large amounts of data and match busses of unequal sizes.

Download 72V36110L7-5PFGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

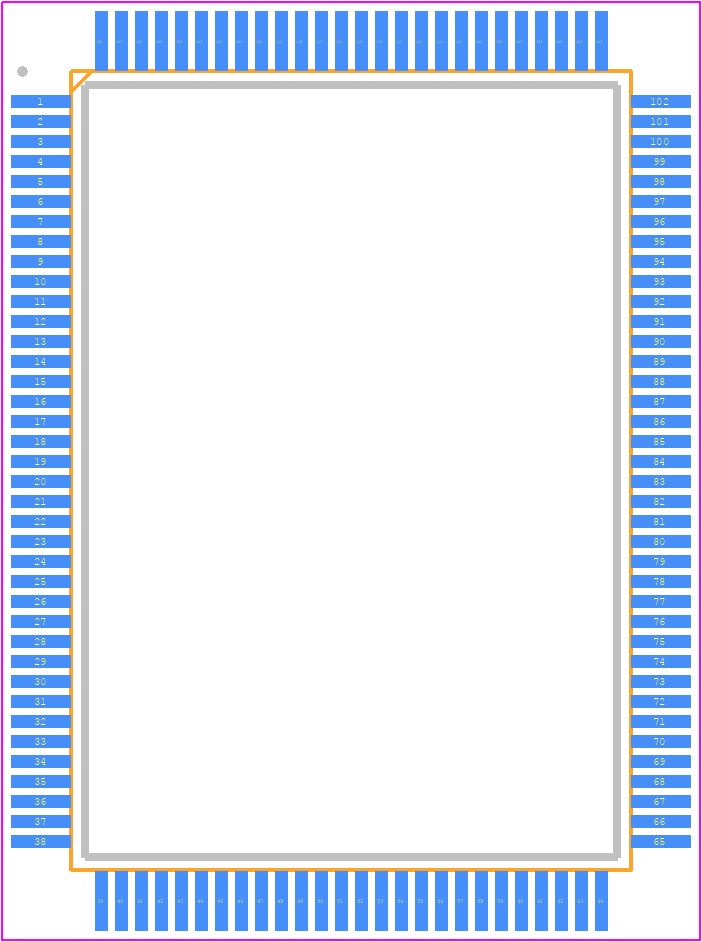

72V36110L7-5PFGI - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - pkg128
click to zoom
3D Models
72V36110L7-5PFGI - Renesas Electronics  - 3D model - Quad Flat Packages - pkg128
click to zoom

72V36110L7-5PFGI Details

  • Manufacturer Part Number:

    72V36110L7-5PFGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFP

  • Pin Count:

    128

  • Manufacturer Package Code:

    PKG128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    5 ns

  • Clock Frequency-Max (fCLK):

    133.3 MHz

  • Cycle Time:

    7.5 ns

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Memory Density:

    4718592 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX36

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP128,.63X.87,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Standby Current-Max:

    0.015 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

72V36110L7-5PFGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 72V36110L7-5PFGI is -40°C to 125°C.
  • The power-up and power-down sequences for the 72V36110L7-5PFGI should be handled according to the recommended power-up and power-down sequences outlined in the datasheet, which involves ramping up the voltage and clock signals in a specific order to ensure proper device operation.
  • The PCB layout for the 72V36110L7-5PFGI should follow the recommended layout guidelines outlined in the datasheet, which include keeping the power and ground planes separate, using decoupling capacitors, and minimizing signal trace lengths and impedance mismatches.
  • To troubleshoot issues with the 72V36110L7-5PFGI, engineers can use tools such as logic analyzers and oscilloscopes to monitor signal waveforms and identify potential issues, and consult the datasheet and application notes for guidance on troubleshooting common problems.
  • The 72V36110L7-5PFGI requires a stable power supply with a voltage range of 1.7V to 1.9V, and decoupling capacitors should be placed close to the device to filter out noise and ensure stable operation.
